Food Chopper Molding

Welcome to our specialized manufacturing services for Food Chopper Molding. As a trusted provider of high-quality custom plastic components and injection molding solutions, we focus on delivering precision-engineered parts tailored for food choppers and kitchen appliances. Whether you need individual plastic components, sub-assemblies, or fully integrated systems, we provide end-to-end support to meet your design, performance, and safety requirements.

Product Overview: Food Chopper Structural Components

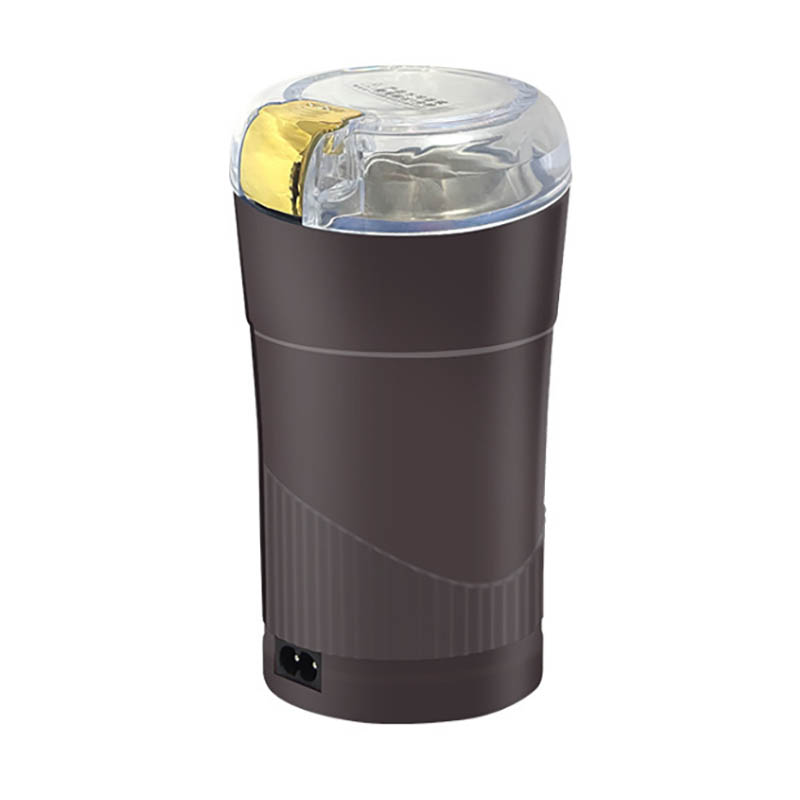

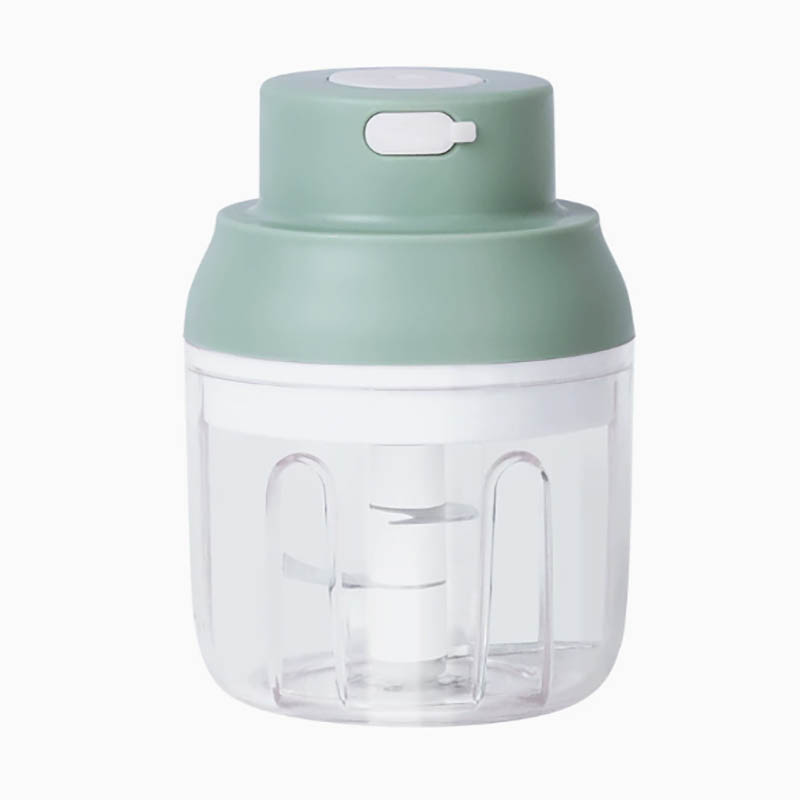

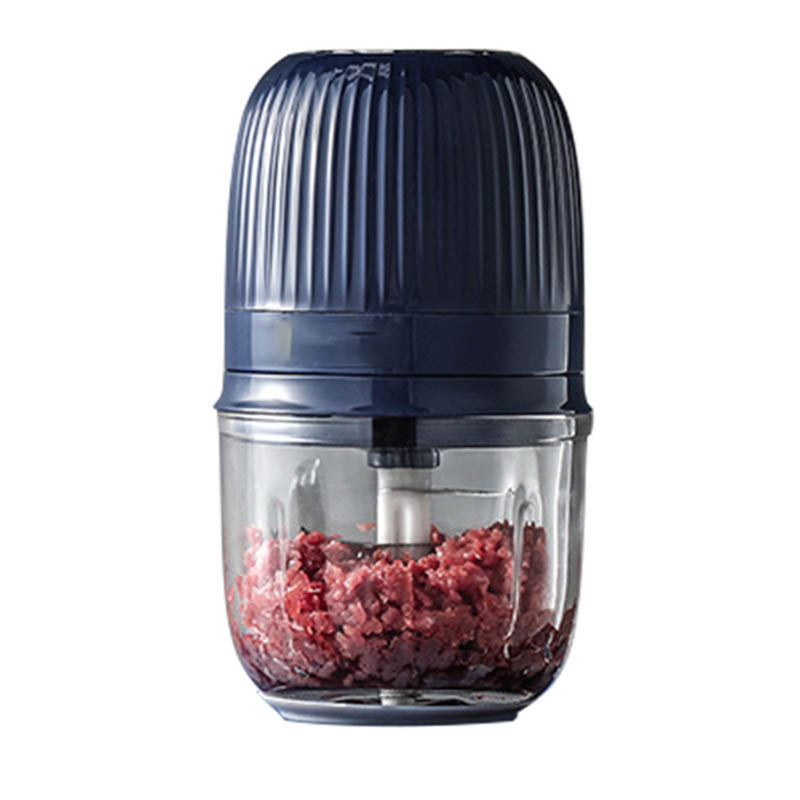

A food chopper is a versatile kitchen tool designed to chop, mince, and blend ingredients efficiently. Its performance and durability rely on the precision of its structural components, which must withstand high-speed operation, frequent contact with food, and rigorous cleaning. Below, we detail the key parts of a food chopper and the recommended materials for each:

1. Main Housing/Body

Function: Encases the motor and mechanical components, providing structural integrity and user safety.

Material Recommendations:

Food-Grade Polypropylene (PP): Lightweight, chemical-resistant, and compliant with FDA/EU food safety standards.

Acrylonitrile Butadiene Styrene (ABS): High impact resistance, heat resistance (up to 80°C), and a smooth surface for easy cleaning.

Customization: Available in ergonomic shapes, textured grips, and custom colors.

2. Blade Assembly Housing

Function: Secures the cutting blades and ensures alignment during operation.

Material Recommendations:

Polycarbonate (PC): Exceptional strength and transparency (if a viewing window is required).

Glass-Fiber Reinforced Nylon (PA66+GF): Enhanced rigidity and resistance to vibration for high-speed applications.

Customization: Precision-molded to match blade dimensions, with options for anti-vibration features.

3. Lid/Cover

Function: Seals the chopper bowl to prevent spills and ensures safe operation.

Material Recommendations:

Food-Grade Tritan Copolyester: Crystal clarity, BPA-free, and resistant to staining and odors.

Polyoxymethylene (POM): High dimensional stability for secure snap-fit or screw-on closures.

Customization: Interlocking mechanisms, integrated safety locks, and venting systems.

4. Chopping Bowl/Container

Function: Holds ingredients during processing; must be durable and easy to clean.

Material Recommendations:

Food-Grade SAN (Styrene Acrylonitrile): Combines clarity with resistance to oils and acids.

High-Density Polyethylene (HDPE): Lightweight and dishwasher-safe.

Customization: Graduated measurement markings, non-slip bases, or stackable designs.

5. Control Panel/Buttons

Function: Houses electronic controls for speed settings and power functions.

Material Recommendations:

PC/ABS Blend: Balances impact resistance, heat tolerance, and aesthetic appeal.

Silicone Rubber (for buttons): Soft-touch feel, waterproof, and resistant to wear.

Customization: Backlit buttons, tactile feedback designs, and waterproof seals.

6. Motor Mounting Base

Function: Anchors the motor and absorbs operational vibrations.

Material Recommendations:

Zytel (PA6/PA66): High heat resistance (up to 120°C) and mechanical strength.

PPS (Polyphenylene Sulfide): Superior dimensional stability for high-torque applications.

Customization: Integrated cooling vents, noise-dampening ribs, and anti-slip pads.

7. Seals and Gaskets

Function: Ensures watertight and airtight performance.

Material Recommendations:

Food-Grade Silicone: Flexible, temperature-resistant (-40°C to 230°C), and easy to sterilize.

TPE (Thermoplastic Elastomer): Combines elasticity with chemical resistance.

Customization: Custom profiles for leak-proof sealing around blades and lids.

We are plastic mold maker and can provide custom mold service, we can make injection molds, blow molds, rotational molds and die-casting molds.

For custom injection molds, we can provide professional custom injection molding services. Usually Food Chopper Molding are manufactured using injection molding technology. The mold materials for injection molds can be chosen from P20, 718, S136, H13 and so on. The mold material reflects the mold life and product material requirements.

For parts that require blow molding production, we can also provide professional custom blow molding services.

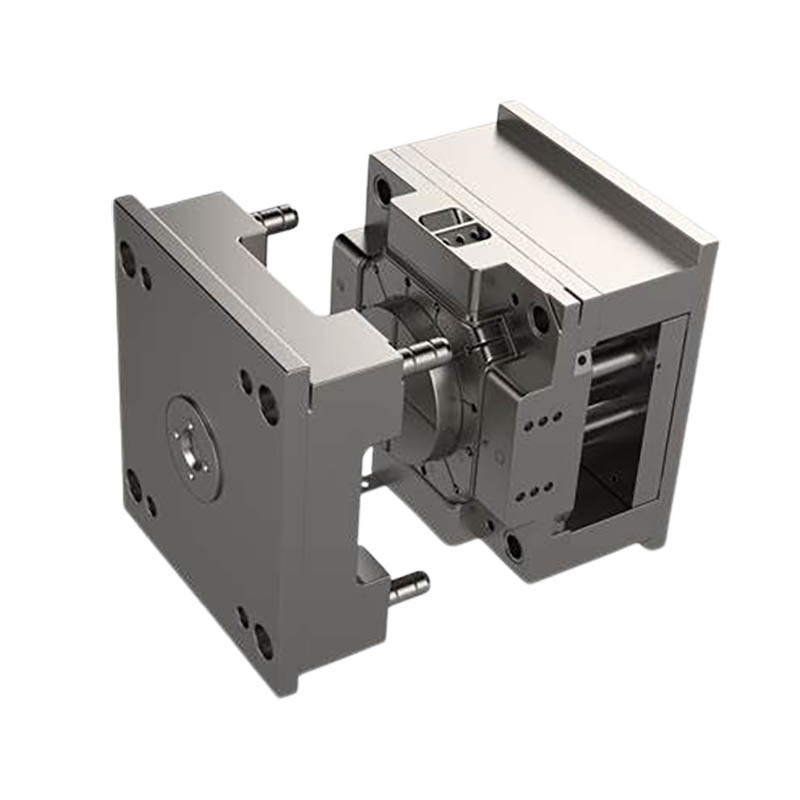

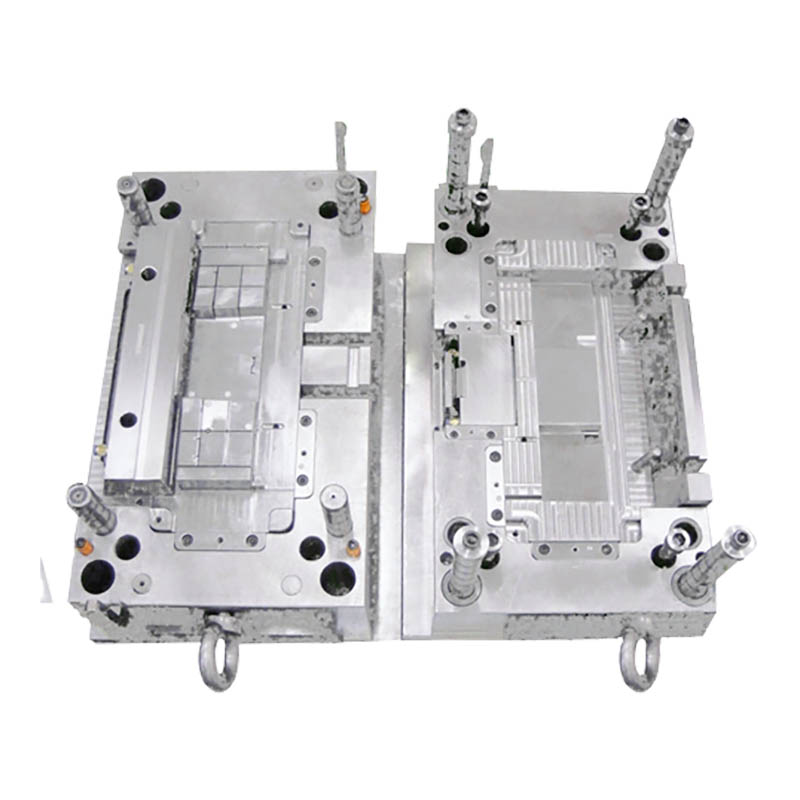

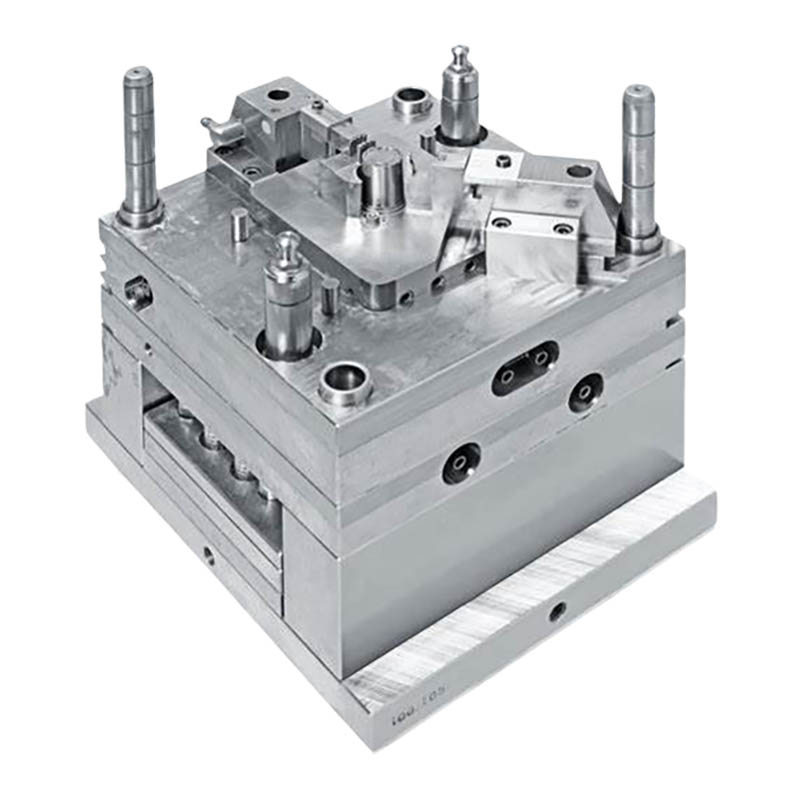

Plastic Food Chopper Injection Mould making

1. Samples/Drawing &Requirement from you.

2. Mould design:we will Communicate and Exchange the opinion with you after you place order.

3. Material Purchase:Steel cutting and Mould base tooling.

4. Assembling.

5. Inspection of mould : following and controlling the tooling processing.

6. Mould testing:We will inform you the date.Than will send the sample's inspection report&injection parameters with the sample to you!

7. Your instruction &confirmation for shipment.

8. Ready made mould before packing.

9. We provide any differeny kinds of plastic injection mould, blow mould, silicone mould, die casting mould service.

Plastic Food Chopper molding Specification

1. Professional manufacturer,design,production injection mould and stamping mould quality control

2. rich export experience plastic injection mould and stamping mould

3. Reasonable price of design mould

4. Cavities: single or as per your requirements cavity

5. Treatment: S45C Pretreat>25Hrc,And Nitriding

6. Mould Steel: Cavity ,Core and slide: P20 ,2738,2136 available Mold base :LKM available

7. Standard:DEM ,HUSKY,available

8. Hot runner: according to your demand

9. Life time: >300 Thousand Times

10. Package: Plywood case, anti-rust paint

Mold design:

Information you need to provide us

1. If you have drawings, 2D drawings, 3D drawings (preferably in STEP format).

2. If there are no drawings, you need to provide specific length, width, height and weight information. (It’s best to send us samples)

3. Should the mold be sent to your country, or leave the mold in our factory and we will help you produce the product.

4. Mold material requirements, cavity number requirements (you can tell us about the size of your injection molding machine)

5. Product material requirements and product quantity. (You can tell us about the use of the product and we can give you suggestions)

Transaction process:

Mold testing:

Once the mold is complete, I do a mold test. It usually takes about 3-5 days to complete. We need to assemble the mold, adjust the pressure data of the machine, and try production. We need to check whether there are problems during the normal production of the mold and make modifications.

Product packaging

Packaging according to your needs

1.By air ,it takes 3-7 days for delivery .The goods can be shipped by DHL ,Fedex ,UPS .

2.By sea ,the delivery time is based on your port .

To South East Asian Countries takes about 5-12 days

To Middle east countries takes about 18-25 days

To European countries takes about 20-28 days

To American countries takes about 28-35 days

To Australia takes about 10-15 days

To African countries takes about 30-35 days.

Factory

Video-1: (Factory Video)

Video-2: (Injection Molding)

Video-3: (Blow molding)

Video-4: (Blow molding)

Video-5: (Roll molding)

Customer satisfaction is our most important goal. We focus on communication and cooperation with our customers, always pay attention to their needs and provide quick response and quality customer service. Our injection production mold factory is committed to establishing long-term relationships and ensuring that our customers receive the best after-sales service during the purchase and use of our products, and we will definitely do our best to solve any problems for our customers.

FAQ

1. Who are we?

We are based in Zhejiang, China, start from 2014,sell to North America(30.00%),Southern Europe(10.00%),Northern.

Europe(10.00%),Central America(10.00%),Western Europe(10.00%),Mid East(10.00%),Eastern Europe(10.00%),South America(10.00%). There are total about 51-100 people in our office.

2. How can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment.

3. What can you buy from us?

Mould,Plastic Product, Metal Product,Dental Product,CNC machining.

4. Why should you buy from us not from other suppliers?

Ningbo P&M Plastic Metal Product Co., Ltd. We main do all kinds of 3d design, 3d printing and plastic metal molds tooling and products. We have our own engineer and factory. One-stop supply:3d design - 3d printing - mold making - plastic injection.

5. What services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU;

Accepted Payment Currency:USD,EUR;

Accepted Payment Type: T/T,L/C,PayPal,Western Union,Escrow;

Language Spoken:English,Chinese,Spanish,French,Russian.

6. What are the characteristics of your service?

1. Your inquiry related to our products or prices will be replied within 24hours.

2. Welltrained and experienced staffs to answer all your enquiries in fluent English.

3. Offering the support to solve the problem in the application or selling period.

4. Competitive prices based on same quality.

5. Guarantee samples quality same as mass production quality.
