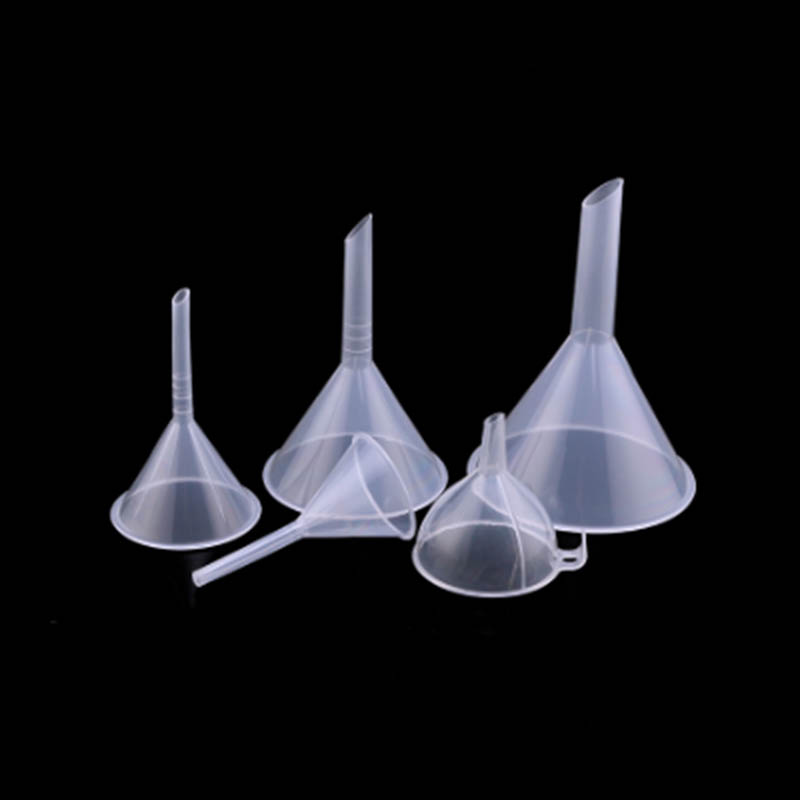

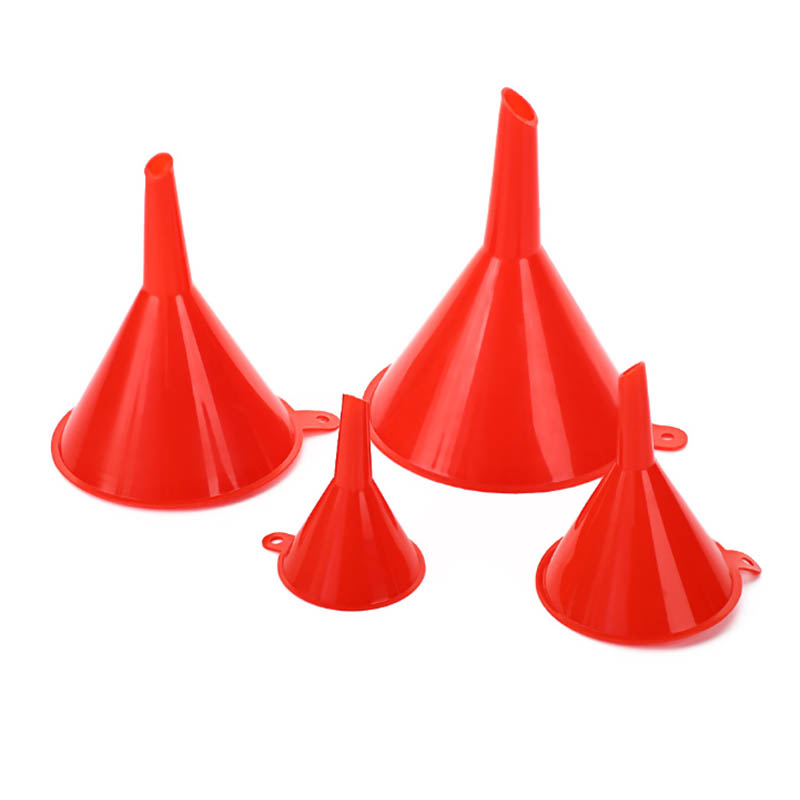

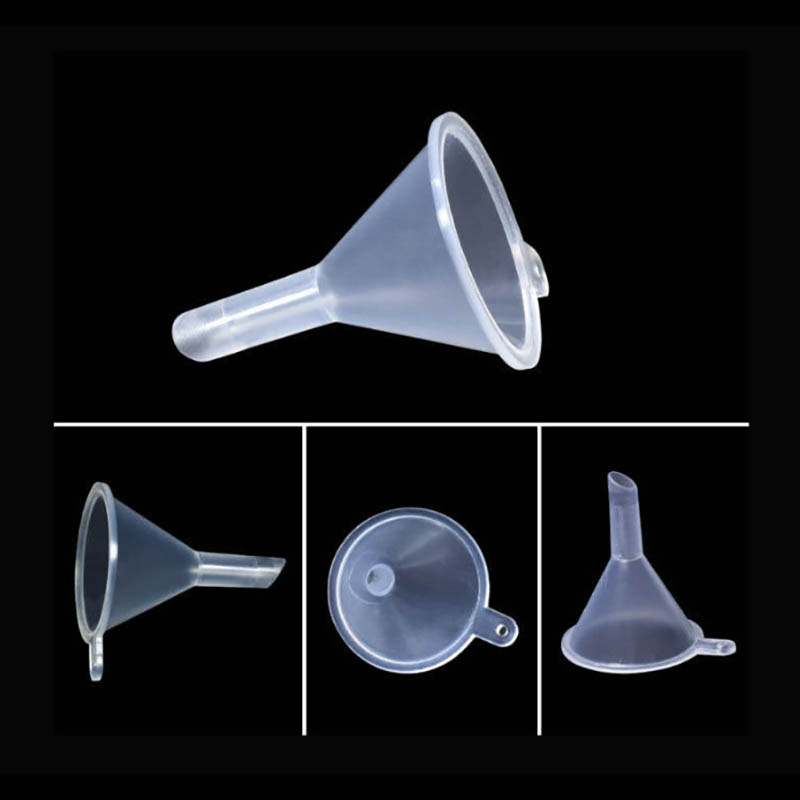

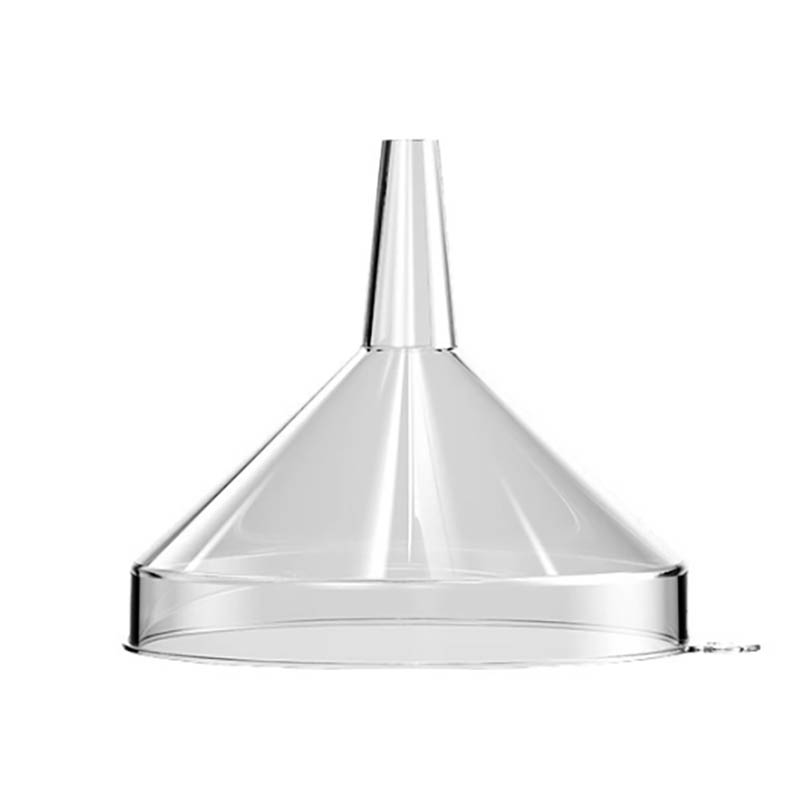

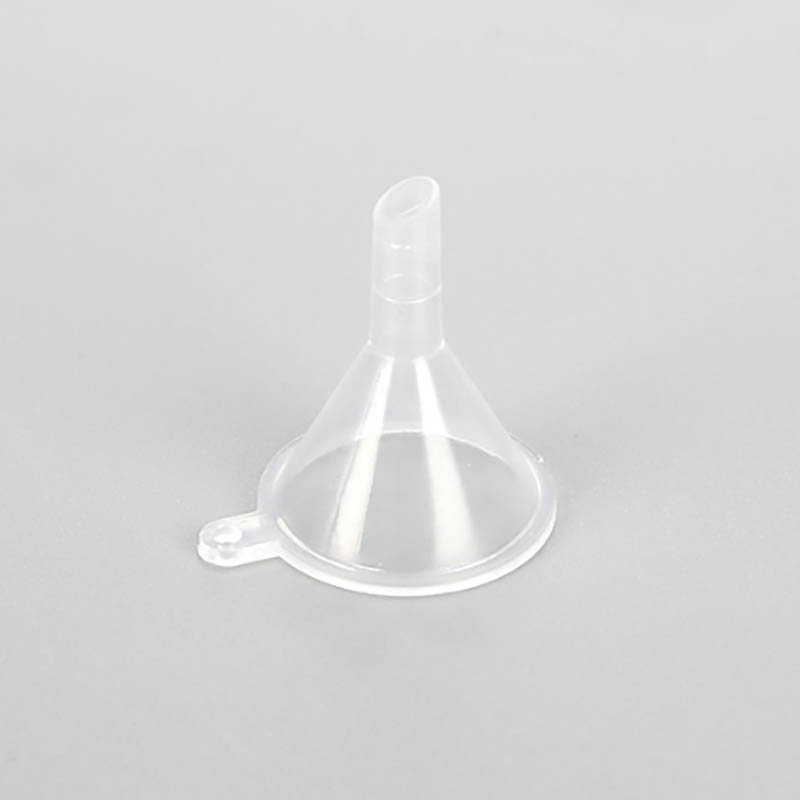

Mini Plastic Funnel Molding

We specialize in manufacturing high-precision plastic components for mini funnels through advanced injection molding technologies. As a trusted supplier to laboratories, cosmetics brands, automotive industries, and household product manufacturers, we deliver customized plastic parts that optimize fluid dynamics, chemical resistance, and user convenience. From mold design to semi-assembled modules, our services empower clients to create mini funnels tailored to precise pouring, filtering, or filling applications.

Whether you need individual funnel bodies, collapsible segments, or integrated filter screens, our expertise ensures compliance with FDA, REACH, and ISO standards for quality and safety.

Key Funnel Structures & Customization Options

1. Funnel Body & Cone

Design Flexibility:

Capacity: 10ml to 500ml, with standard (60° cone angle) or custom geometries (wide-mouth, long-tip).

Wall Thickness: 0.5–2.0mm, balanced for rigidity and weight reduction.

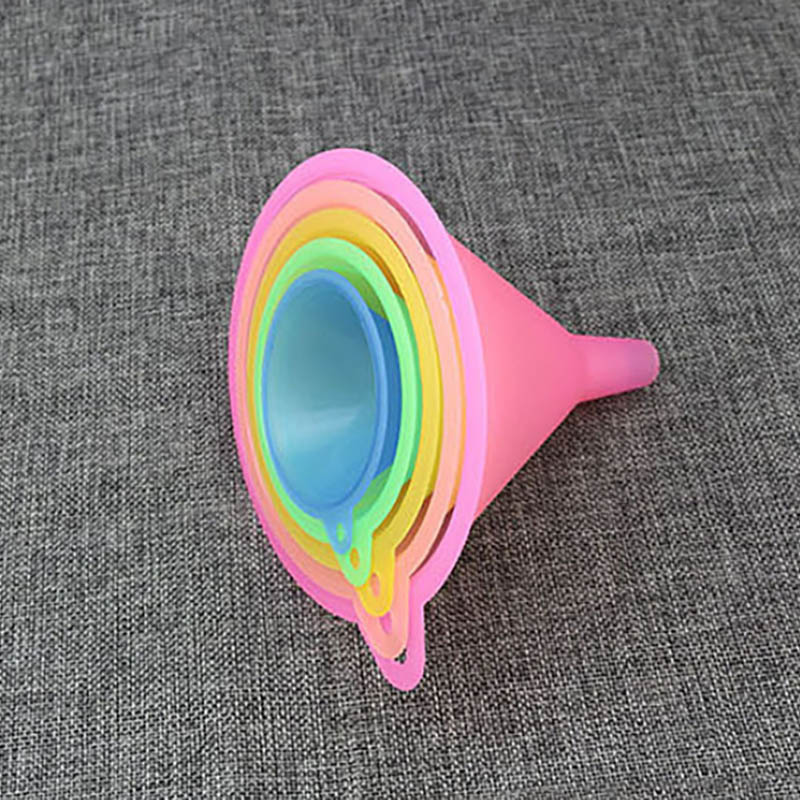

Collapsible Design: Stackable nested segments for space-saving storage.

Material Options:

PP (Polypropylene): Chemical-resistant to oils, acids, and alcohols (ideal for labs).

PETG (Glycol-Modified PET): Crystal-clear transparency for fluid visibility.

LDPE (Low-Density PE): Flexible and squeezable for viscous liquids.

Surface Finishes:

Matte anti-drip textures, laser-etched graduations, or IMD (In-Mold Decoration) logos.

2. Neck & Spout

Functional Customization:

Interchangeable Tips: Threaded or snap-fit nozzles (1–10mm diameter) for controlled flow.

Anti-Splash Ridges: Internal spiral grooves to reduce turbulence.

Drip-Free Design: Precision-molded lips to prevent leakage.

Material Precision:

POM (Acetal): Low friction for smooth liquid flow.

Silicone Overmolding: Flexible seals for airtight container connections.

3. Filter & Sieve Integration

Modular Components:

Snap-In Mesh Screens: Stainless steel or nylon mesh (50–200μm pores).

Removable Filter Discs: PP or PTFE membranes for particle retention.

Molded Sieve Ridges: Internal ribs to hold replaceable filter paper.

Material Choices:

Nylon 6/6: Heat-resistant (up to 150°C) for autoclave sterilization.

PVDF (Kynar): Inert and chemical-resistant for aggressive solvents.

4. Handle & Ergonomics

User-Centric Features:

Foldable Handles: Overmolded TPE hinges for compact storage.

Non-Slip Grips: Diamond knurling (Ra 20–50μm) or soft-touch coatings.

Magnetic Bases: Embedded ferrite cores for hands-free attachment to metal surfaces.

Material Durability:

ABS/PC Blend: Impact-resistant for industrial environments.

Bio-Based PLA: Compostable option for eco-conscious brands.

Material Selection Guide

1. Polypropylene (PP)

Key Benefits:

Autoclavable (121°C), chemically inert, and cost-effective.

FDA-compliant for food and pharmaceutical use.

Applications:

Laboratory funnels, kitchen oil fillers.

2. PETG (Glycol-Modified PET)

Key Benefits:

Glass-like clarity (90% transparency) with high impact strength.

Recyclable and resistant to alcohol-based solutions.

Applications:

Cosmetic essence dispensers, medical liquid transfers.

3. Fluoropolymers (PTFE, PFA)

Key Benefits:

Non-stick surfaces and extreme chemical resistance.

Ultra-low leachables for high-purity applications.

Applications:

Semiconductor chemical handling, analytical chemistry.

4. Sustainable Alternatives

Options:

30–100% Post-Consumer Recycled PP: Lab-certified with batch traceability.

PHA (Polyhydroxyalkanoates): Marine-degradable for eco-sensitive markets.

Sugarcane-Based PE: Carbon-neutral renewable material.

Certifications:

BPI, OK Compost, Global Recycled Standard (GRS).

Advanced Injection Molding Capabilities

1. Precision Mold Design

Tooling Expertise:

Multi-cavity molds (up to 64 cavities) with hot runner systems for high-volume efficiency.

Conformal cooling channels to eliminate warpage in thin-walled cones.

Slide actions for undercut features (e.g., snap-fit grooves, collapsible hinges).

Prototyping:

3D-printed functional samples in 48 hours for flow testing.

2. Specialized Molding Techniques

Two-Shot Molding:

Combine rigid PETG funnels with flexible TPE handles in a single cycle.

Gas-Assisted Molding:

Hollow handles for 20–30% weight reduction without structural compromise.

Microcellular Foaming:

Lightweight designs with improved thermal insulation.

3. Surface & Functional Enhancements

Performance Treatments:

Plasma Etching: Hydrophilic surfaces for rapid liquid drainage.

Antistatic Masterbatches: Prevent dust adhesion in cleanrooms.

Aesthetic Finishes:

In-Mold Labeling (IML): Permanent measurement scales or hazard symbols.

Metallic Effects: Vacuum deposition for premium branding.

4. Assembly & Quality Control

Value-Added Services:

Ultrasonic welding for filter screen integration.

Automated leak testing (0.3–1.0 bar pressure).

100% dimensional inspection via laser scanners (±0.05mm tolerance).

Compliance Testing:

ASTM D543 chemical resistance tests (24h immersion).

5,000-cycle fatigue testing on collapsible joints.

We are plastic mold maker and can provide custom mold service, we can make injection molds, blow molds, rotational molds and die-casting molds.

For custom injection molds, we can provide professional custom injection molding services. UsuallyPlastic brush Molding are manufactured using injection molding technology. The mold materials for injection molds can be chosen from P20, 718, S136, H13 and so on. The mold material reflects the mold life and product material requirements.

For parts that require blow molding production, we can also provide professional custom blow molding services.

Mini plastic funnel Injection Mould making

1. Samples/Drawing &Requirement from you.

2. Mould design:we will Communicate and Exchange the opinion with you after you place order.

3. Material Purchase:Steel cutting and Mould base tooling.

4. Assembling.

5. Inspection of mould : following and controlling the tooling processing.

6. Mould testing:We will inform you the date.Than will send the sample's inspection report&injection parameters with the sample to you!

7. Your instruction &confirmation for shipment.

8. Ready made mould before packing.

9. We provide any differeny kinds of plastic injection mould, blow mould, silicone mould, die casting mould service.

Mini plastic funnel molding Specification

1. Professional manufacturer,design,production injection mould and stamping mould quality control

2. rich export experience plastic injection mould and stamping mould

3. Reasonable price of design mould

4. Cavities: single or as per your requirements cavity

5. Treatment: S45C Pretreat>25Hrc,And Nitriding

6. Mould Steel: Cavity ,Core and slide: P20 ,2738,2136 available Mold base :LKM available

7. Standard:DEM ,HUSKY,available

8. Hot runner: according to your demand

9. Life time: >300 Thousand Times

10. Package: Plywood case, anti-rust paint

Mold design:

Information you need to provide us

1. If you have drawings, 2D drawings, 3D drawings (preferably in STEP format).

2. If there are no drawings, you need to provide specific length, width, height and weight information. (It’s best to send us samples)

3. Should the mold be sent to your country, or leave the mold in our factory and we will help you produce the product.

4. Mold material requirements, cavity number requirements (you can tell us about the size of your injection molding machine)

5. Product material requirements and product quantity. (You can tell us about the use of the product and we can give you suggestions)

Transaction process:

Mold testing:

Once the mold is complete, I do a mold test. It usually takes about 3-5 days to complete. We need to assemble the mold, adjust the pressure data of the machine, and try production. We need to check whether there are problems during the normal production of the mold and make modifications.

Product packaging

Packaging according to your needs

1.By air ,it takes 3-7 days for delivery .The goods can be shipped by DHL ,Fedex ,UPS .

2.By sea ,the delivery time is based on your port .

To South East Asian Countries takes about 5-12 days

To Middle east countries takes about 18-25 days

To European countries takes about 20-28 days

To American countries takes about 28-35 days

To Australia takes about 10-15 days

To African countries takes about 30-35 days.

Factory

Video-1: (Factory Video)

Video-2: (Injection Molding)

Video-3: (Blow molding)

Video-4: (Blow molding)

Video-5: (Roll molding)

Customer satisfaction is our most important goal. We focus on communication and cooperation with our customers, always pay attention to their needs and provide quick response and quality customer service. Our injection production mold factory is committed to establishing long-term relationships and ensuring that our customers receive the best after-sales service during the purchase and use of our products, and we will definitely do our best to solve any problems for our customers.

FAQ

1. Who are we?

We are based in Zhejiang, China, start from 2014,sell to North America(30.00%),Southern Europe(10.00%),Northern.

Europe(10.00%),Central America(10.00%),Western Europe(10.00%),Mid East(10.00%),Eastern Europe(10.00%),South America(10.00%). There are total about 51-100 people in our office.

2. How can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment.

3. What can you buy from us?

Mould,Plastic Product, Metal Product,Dental Product,CNC machining.

4. Why should you buy from us not from other suppliers?

Ningbo P&M Plastic Metal Product Co., Ltd. We main do all kinds of 3d design, 3d printing and plastic metal molds tooling and products. We have our own engineer and factory. One-stop supply:3d design - 3d printing - mold making - plastic injection.

5. What services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU;

Accepted Payment Currency:USD,EUR;

Accepted Payment Type: T/T,L/C,PayPal,Western Union,Escrow;

Language Spoken:English,Chinese,Spanish,French,Russian.

6. What are the characteristics of your service?

1. Your inquiry related to our products or prices will be replied within 24hours.

2. Welltrained and experienced staffs to answer all your enquiries in fluent English.

3. Offering the support to solve the problem in the application or selling period.

4. Competitive prices based on same quality.

5. Guarantee samples quality same as mass production quality.
