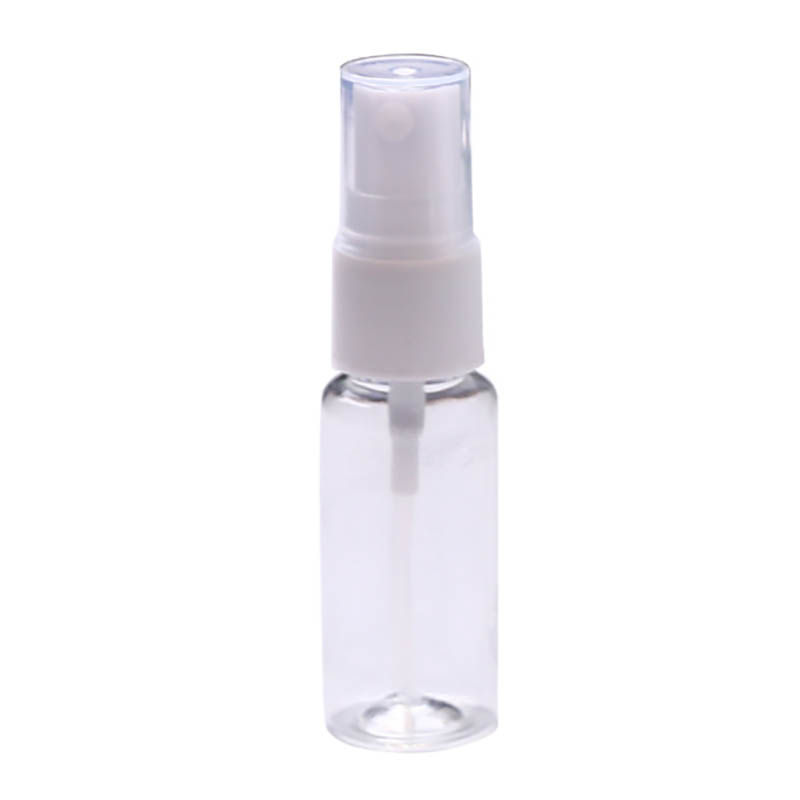

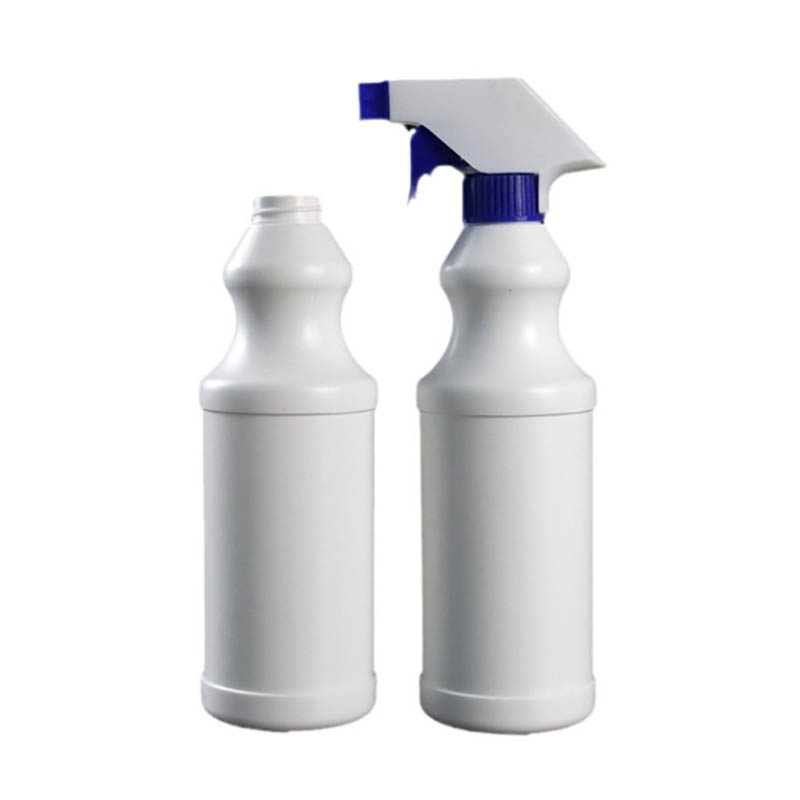

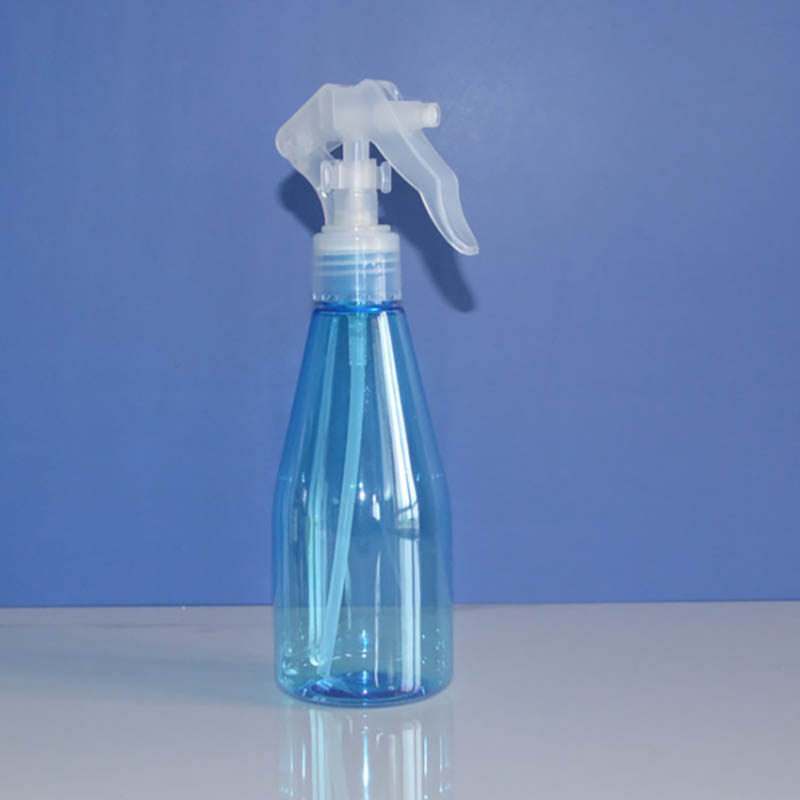

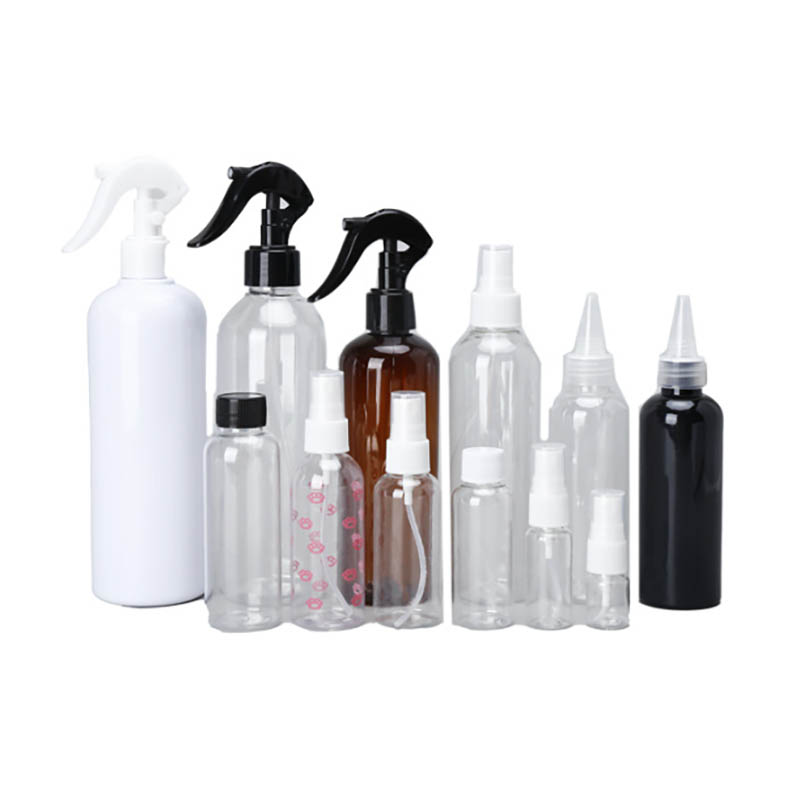

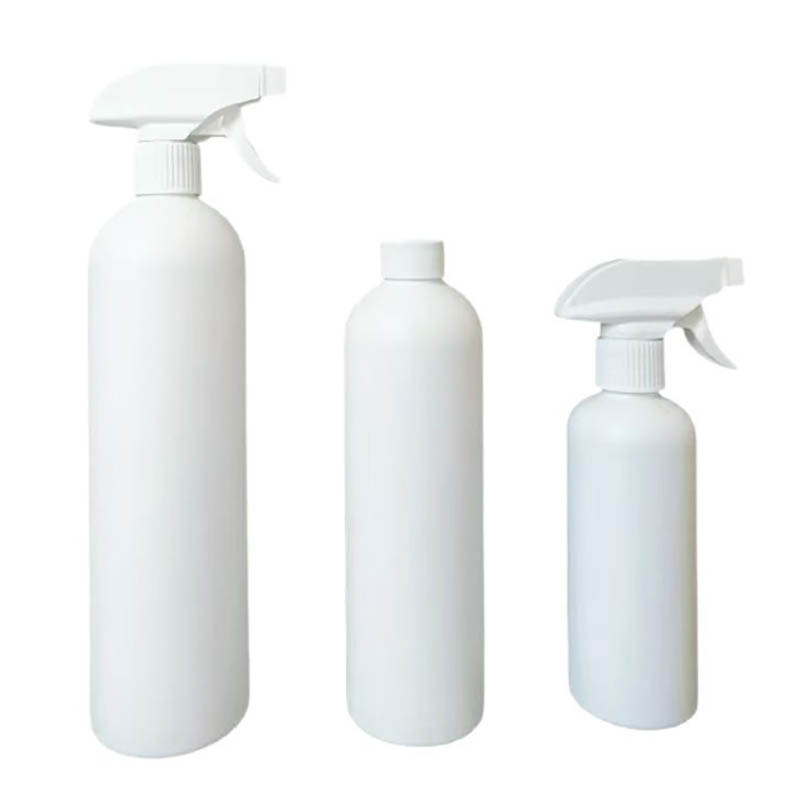

Mist Spray Bottle Molding

We specialize in manufacturing custom plastic components for mist spray bottles through advanced injection molding technologies. As a professional plastic parts supplier, we focus on delivering high-precision, durable, and aesthetically tailored solutions for spray bottle brands, cosmetic packaging companies, and industrial liquid dispensing systems.

Whether you need individual plastic parts (bodies, nozzles, pumps, caps) or semi-assembled modules, our vertically integrated services – from mold design to mass production – ensure seamless customization, rapid prototyping, and cost-effective scalability.

Key Spray Bottle Structures & Customization Options

1. Bottle Body

Design Flexibility:

Cylindrical, oval, or ergonomic shapes (50ml to 500ml capacity).

Custom wall thickness (0.8mm to 3mm) for lightweight yet crack-resistant performance.

Material Options:

PETG: Crystal-clear transparency, ideal for premium cosmetics (e.g., facial mists).

PP (Polypropylene): Chemical resistance, suitable for household cleaners or disinfectants.

HDPE: Opaque & rigid, perfect for UV-sensitive formulations (e.g., essential oils).

Surface Finishes:

Glossy/matte textures, gradient coloring, or IMD (In-Mold Decoration) for branded patterns.

2. Spray Nozzle & Pump Mechanism

Core Components:

Nozzle Head: Micro-hole design (0.2mm–0.5mm) for fine mist control.

Piston & Spring: Smooth actuation with 10,000+ press cycles durability.

Dip Tube: Adjustable length (matched to bottle height) with anti-clogging features.

Material Precision:

Nozzle: POM (Polyoxymethylene) or reinforced nylon for wear resistance.

Spring Housing: Glass-filled PP to withstand repetitive mechanical stress.

Seals: Food-grade TPE/TPU for leak-proof performance.

3. Cap & Locking Ring

Functional Customization:

Child-resistant locks, flip-top covers, or twist-to-open mechanisms.

Integrated hinges for tamper-evident designs.

Material Choices:

ABS: High-gloss finish for luxury skincare packaging.

PP+TPE Overmolding: Soft-touch grips for user comfort.

Recycled PCR Plastic: Eco-friendly option with ISO 14001 compliance.

4. Accessory Parts

Optional Add-ons:

Decorative collars, hanging hooks, or dosage measurement markings.

Anti-slip sleeves (overmolded silicone/TPE).

Advanced Injection Molding Capabilities

1. Precision Mold Design

Tooling Expertise:

Multi-cavity molds (up to 64 cavities) for high-volume efficiency.

Hot runner systems to minimize material waste and cycle time.

CNC-machined steel/aluminum molds with <0.01mm tolerance.

Rapid Prototyping:

3D-printed mold trials available within 72 hours for design validation.

2. Material Selection & Testing

Comprehensive Support:

FDA/EU 10/2011-compliant resins for food/medical safety.

Chemical resistance testing (compatible with alcohols, essential oils, etc.).

Drop tests (1.5m height) and pressure resistance validation (up to 5 bar).

3. Surface Enhancement Technologies

Aesthetic & Functional Treatments:

In-Mold Labeling (IML): Permanent branding without post-processing.

Plasma Coating: Anti-fingerprint & anti-static surfaces.

UV Printing: Fade-resistant logos & gradient effects.

We are plastic mold maker and can provide custom mold service, we can make injection molds, blow molds, rotational molds and die-casting molds.

For custom injection molds, we can provide professional custom injection molding services. Usually Mist spray bottle Molding are manufactured using injection molding technology. The mold materials for injection molds can be chosen from P20, 718, S136, H13 and so on. The mold material reflects the mold life and product material requirements.

For parts that require blow molding production, we can also provide professional custom blow molding services.

Plastic Mist spray bottle Injection Mould making

1. Samples/Drawing &Requirement from you.

2. Mould design:we will Communicate and Exchange the opinion with you after you place order.

3. Material Purchase:Steel cutting and Mould base tooling.

4. Assembling.

5. Inspection of mould : following and controlling the tooling processing.

6. Mould testing:We will inform you the date.Than will send the sample's inspection report&injection parameters with the sample to you!

7. Your instruction &confirmation for shipment.

8. Ready made mould before packing.

9. We provide any differeny kinds of plastic injection mould, blow mould, silicone mould, die casting mould service.

Plastic Mist spray bottle molding Specification

1. Professional manufacturer,design,production injection mould and stamping mould quality control

2. rich export experience plastic injection mould and stamping mould

3. Reasonable price of design mould

4. Cavities: single or as per your requirements cavity

5. Treatment: S45C Pretreat>25Hrc,And Nitriding

6. Mould Steel: Cavity ,Core and slide: P20 ,2738,2136 available Mold base :LKM available

7. Standard:DEM ,HUSKY,available

8. Hot runner: according to your demand

9. Life time: >300 Thousand Times

10. Package: Plywood case, anti-rust paint

Mold design:

Information you need to provide us

1. If you have drawings, 2D drawings, 3D drawings (preferably in STEP format).

2. If there are no drawings, you need to provide specific length, width, height and weight information. (It’s best to send us samples)

3. Should the mold be sent to your country, or leave the mold in our factory and we will help you produce the product.

4. Mold material requirements, cavity number requirements (you can tell us about the size of your injection molding machine)

5. Product material requirements and product quantity. (You can tell us about the use of the product and we can give you suggestions)

Transaction process:

Mold testing:

Once the mold is complete, I do a mold test. It usually takes about 3-5 days to complete. We need to assemble the mold, adjust the pressure data of the machine, and try production. We need to check whether there are problems during the normal production of the mold and make modifications.

Product packaging

Packaging according to your needs

1.By air ,it takes 3-7 days for delivery .The goods can be shipped by DHL ,Fedex ,UPS .

2.By sea ,the delivery time is based on your port .

To South East Asian Countries takes about 5-12 days

To Middle east countries takes about 18-25 days

To European countries takes about 20-28 days

To American countries takes about 28-35 days

To Australia takes about 10-15 days

To African countries takes about 30-35 days.

Factory

Video-1: (Factory Video)

Video-2: (Injection Molding)

Video-3: (Blow molding)

Video-4: (Blow molding)

Video-5: (Roll molding)

Customer satisfaction is our most important goal. We focus on communication and cooperation with our customers, always pay attention to their needs and provide quick response and quality customer service. Our injection production mold factory is committed to establishing long-term relationships and ensuring that our customers receive the best after-sales service during the purchase and use of our products, and we will definitely do our best to solve any problems for our customers.
