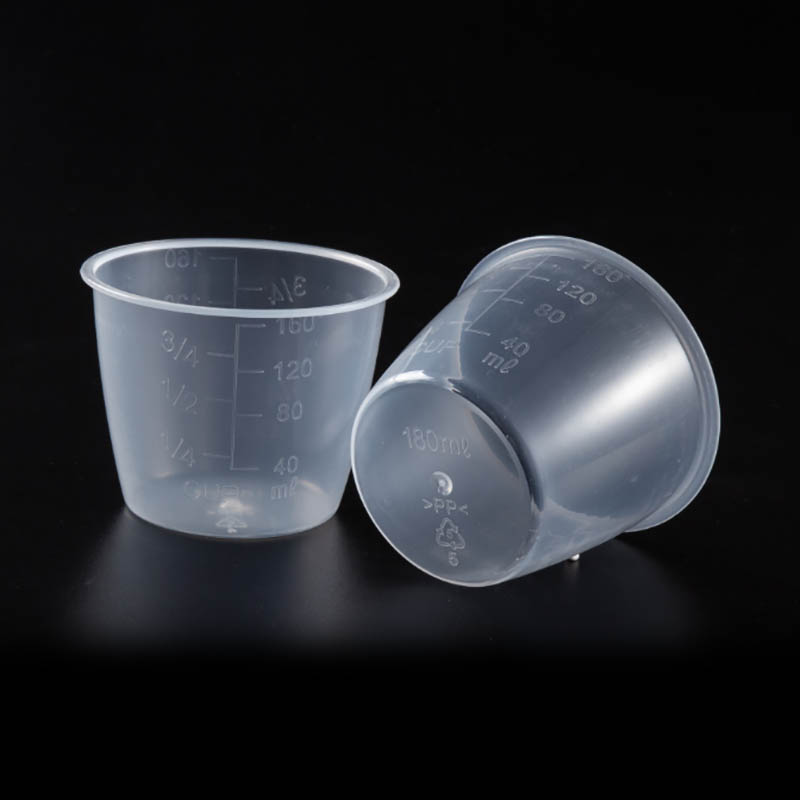

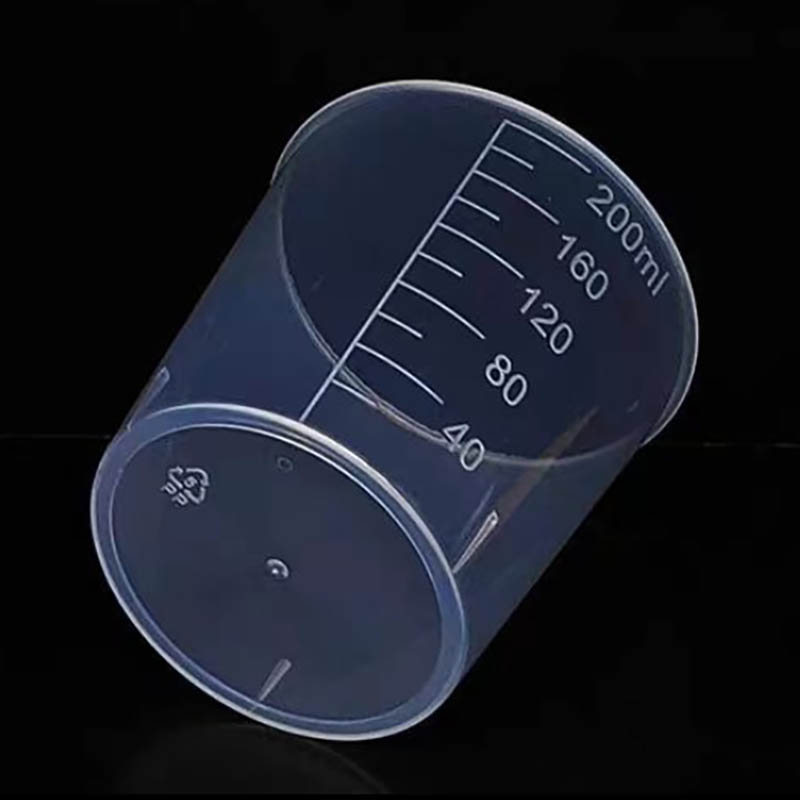

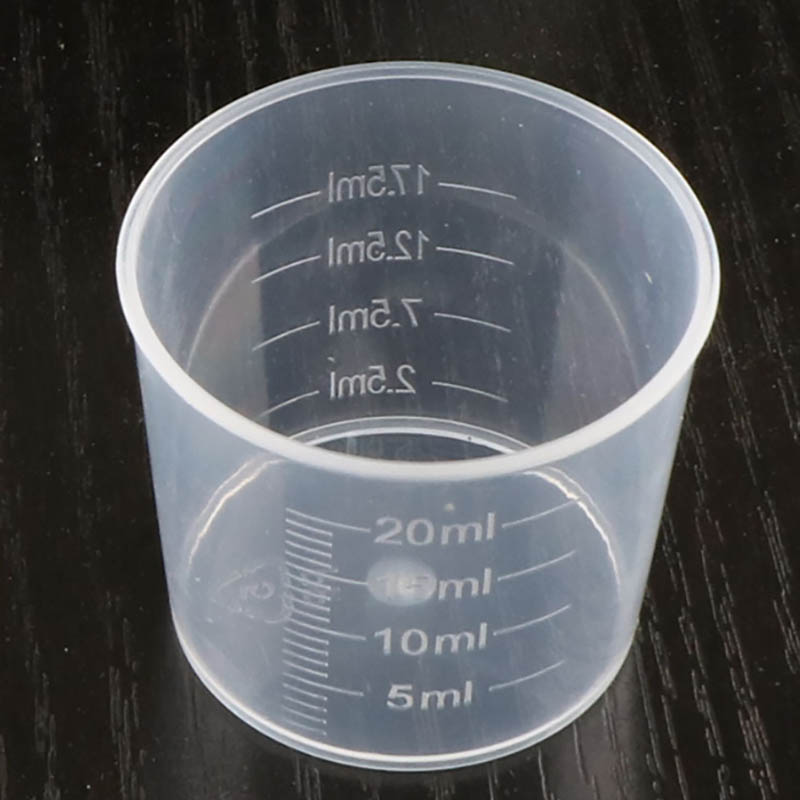

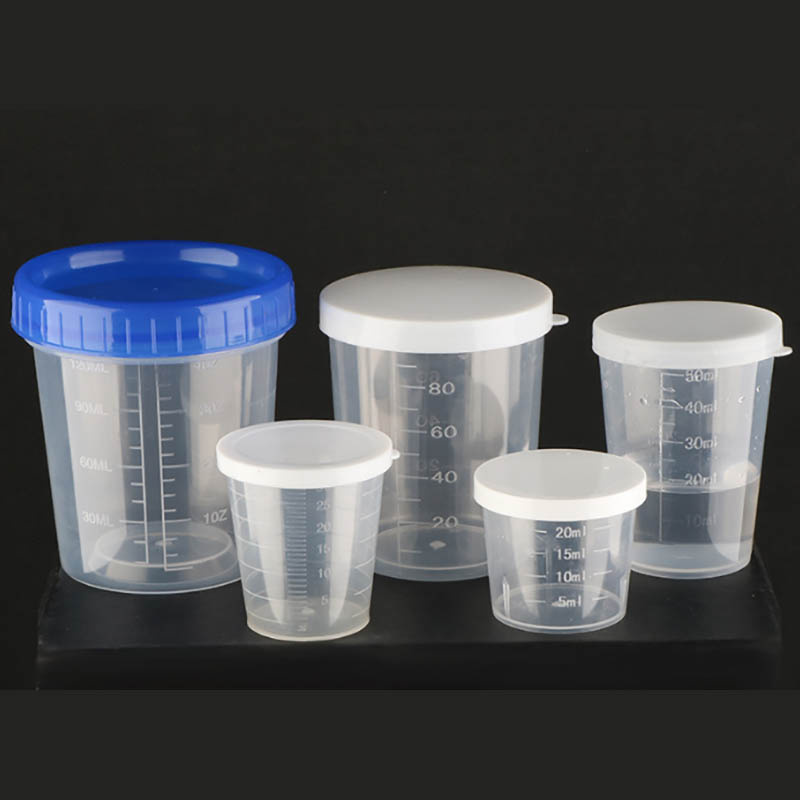

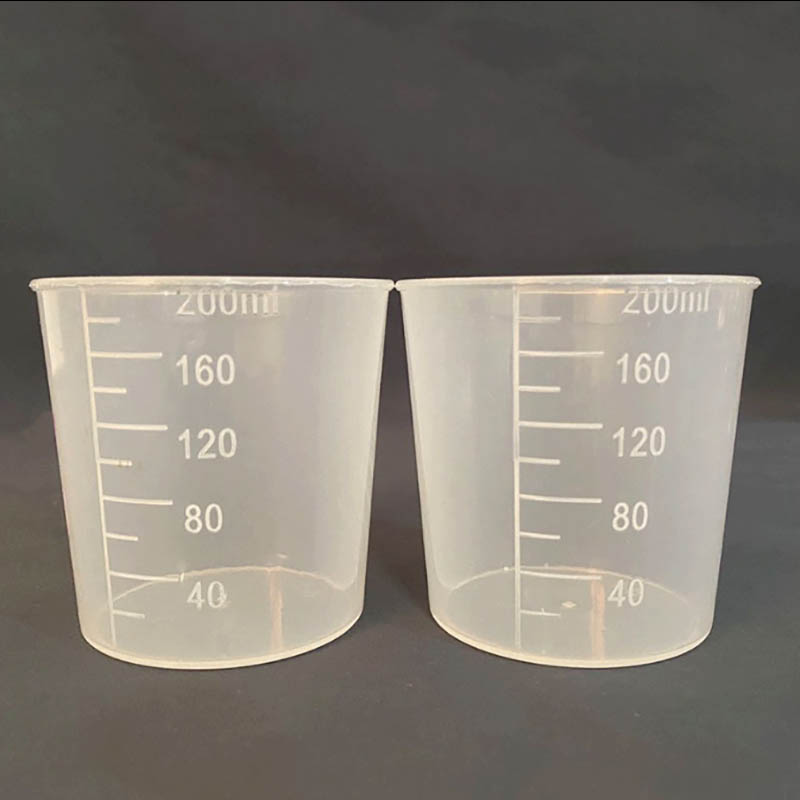

Plastic Measuring Cup Molding

We specialize in manufacturing high-precision plastic components for measuring cups through advanced injection molding technologies. As a leading supplier to laboratories, food & beverage industries, pharmaceutical companies, and household product brands, we deliver customized plastic parts that ensure volumetric accuracy, chemical compatibility, and user safety. From mold design to semi-assembled modules, our services empower clients to create measuring cups tailored to precise dosing, mixing, or industrial process control applications.

Whether you need individual cup bodies, spouts, handles, or integrated measurement systems, our expertise in material science and high-volume production ensures compliance with FDA, EU 10/2011, ISO 13485, and ASTM standards.

Key Measuring Cup Structures & Customization Options

1. Cup Body & Measurement Chamber

Design Flexibility:

Capacity: 50ml to 2000ml, with cylindrical, conical, or nested stackable profiles.

Wall Thickness: 1.0–3.0mm, optimized for thermal stability (autoclavable up to 121°C) and impact resistance.

Pouring Spout: Angled lip (15°–45°) for drip-free liquid transfer.

Material Options:

PP (Polypropylene): Chemical-resistant to acids, alcohols, and oils (ideal for labs and kitchens).

PMP (Polymethylpentene): 90% light transmission with heat resistance up to 180°C.

PC (Polycarbonate): High-impact clarity for industrial environments.

Surface Finishes:

Laser-etched graduations (0.1ml resolution), anti-glare matte zones, or IMD (In-Mold Decoration) branding.

2. Graduation Markings & Labels

Functional Customization:

Permanent Scales: In-mold laser engraving or dual-shot molding for fade-resistant accuracy.

Multi-Language Labels: Custom text fields for hazard warnings, instructions, or certifications.

Color-Coded Bands: Pantone-matched rings for quick volume identification.

Material Precision:

Co-Polyester (Tritan™): Scratch-resistant surfaces to maintain legibility after repeated cleaning.

Chemical-Resistant Inks: Withstand bleach, ethanol, and detergent exposure.

3. Handle & Ergonomics

User-Centric Features:

Overmolded Grips: TPE/TPU (Shore A 50–70) for non-slip comfort and thermal insulation.

Foldable Handles: Hinged designs for compact storage in tight spaces.

Weight-Balanced Design: Low center of gravity to prevent tipping.

Material Choices:

ABS/PC Blend: High rigidity for heavy-duty industrial cups.

Bio-Based PLA: Compostable option for eco-conscious brands.

4. Base & Stability Features

Structural Optimization:

Anti-Slip Rings: Overmolded TPV or textured patterns (Ra 10–30μm) for bench stability.

Reinforced Foot: Hexagonal or flared designs to resist deformation under load.

Stackability: Interlocking rims for vertical storage efficiency.

Material Selection Guide

1. Polypropylene (PP)

Key Benefits:

Autoclavable (121°C/15psi), chemically inert, and cost-effective.

USP Class VI compliant for medical and food contact.

Applications:

Laboratory beakers, kitchen measuring cups.

2. PMP (Polymethylpentene)

Key Benefits:

Glass-like clarity with superior thermal resistance (up to 180°C).

Low water absorption (<0.01%) for precise volumetric consistency.

Applications:

High-purity pharmaceutical mixing, optical fluid analysis.

3. Fluoropolymers (PFA, FEP)

Key Benefits:

Extreme chemical resistance (HF, aqua regia, DMSO).

Ultra-low extractables for trace analysis (ICP-MS, HPLC).

Applications:

Semiconductor wet processing, analytical chemistry.

4. Sustainable Solutions

Options:

30–100% Post-Consumer Recycled PP: Lab-certified with full traceability.

PLA (Polylactic Acid): Compostable under industrial conditions.

Ocean-Bound Plastic (OBP): Certified marine plastic for CSR initiatives.

Certifications:

BPI, OK Compost, Global Recycled Standard (GRS).

Advanced Injection Molding Capabilities

1. Precision Mold Design

Tooling Expertise:

Multi-cavity molds (up to 64 cavities) with hot runner systems for high-volume efficiency (10,000+ units/day).

Conformal cooling channels to eliminate warpage in thin-walled cups.

Slide actions for undercut features (e.g., spout angles, handle grooves).

Prototyping:

3D-printed functional samples in 72 hours for volumetric accuracy testing.

2. Specialized Molding Techniques

Two-Shot Molding:

Combine rigid PMP cups with soft TPE handles in a single cycle.

Gas-Assisted Molding:

Hollow handles for 20–25% weight reduction without structural compromise.

Microcellular Foaming:

Lightweight designs with improved insulation properties.

3. Surface & Functional Enhancements

Performance Treatments:

Plasma Coating: Hydrophobic surfaces for rapid draining and easy cleaning.

Antistatic Additives: Prevent dust adhesion in cleanroom environments.

Aesthetic Finishes:

In-Mold Labeling (IML): Permanent logos compliant with GMP/ISO standards.

Metallic Flake Effects: Vacuum deposition for premium branding.

4. Assembly & Quality Control

Value-Added Services:

Ultrasonic welding for leak-proof spout integration.

Automated vision inspection for graduation alignment (±0.05mm tolerance).

100% pressure decay testing (0.5–2.0 bar).

Compliance Testing:

ASTM E542 volumetric calibration (Class A/B accuracy).

Chemical immersion tests (24h in NaOH 1M, HCl 1M).

Why Choose Us?

1. Tailored Design Solutions

Application-Specific Engineering:

Optimize spout geometry for laminar flow (e.g., low-turbulence pouring).

Customize neck finishes (e.g., DIN 11851 threads for lab bottle compatibility).

Cross-Industry Expertise:

Life sciences (ISO 17025), food processing (FDA 21 CFR), and industrial manufacturing.

2. Speed-to-Market Advantage

Rapid Tooling:

14-day lead time for production-ready molds.

Global Scalability:

High-volume production (500k+ units/month) with regional hubs in Asia, EU, and Americas.

3. Cost Efficiency

Design for Manufacturing (DFM):

Consolidate components (e.g., integrated handle-cup designs) to reduce assembly steps.

Optimize gate locations to minimize finishing labor by 15–20%.

Material Savings:

Regrind programs for PP/PMP to reduce virgin resin consumption.

Industries We Serve

Laboratory & Healthcare: Sterile media preparation, diagnostic sample handling.

Food & Beverage: FDA-compliant mixing cups, barista milk pitchers.

Industrial Chemicals: Corrosion-resistant containers for solvent blending.

Consumer Goods: Ergonomic kitchenware with drop resistance.

Quality Assurance

In-Line Monitoring:

Real-time pressure/temperature sensors for process consistency.

Automated laser scanning for dimensional accuracy (±0.1mm).

We are plastic mold maker and can provide custom mold service, we can make injection molds, blow molds, rotational molds and die-casting molds.

For custom injection molds, we can provide professional custom injection molding services. Usually Plastic measuring cup Molding are manufactured using injection molding technology. The mold materials for injection molds can be chosen from P20, 718, S136, H13 and so on. The mold material reflects the mold life and product material requirements.

For parts that require blow molding production, we can also provide professional custom blow molding services.

Product Name	Plastic measuring cup Molding
Pls provide	2D, 3D, samples, or the size of the multi-angle pictures
Mould Time	20-35 Days
Product time	7-15 Days
Mould precision	+/-0.01mm
Mould life	50-100 million shots
Producing Process	Audit drawings - mold flow analysis - design validation - Custom Materials - mold processing - core processing - electrode machining - Runner system processing - parts processing and procurement - machining acceptance - cavity surface treatment process - complex mode Die - The entire mold surface coating - Mounting plate - mold sample - sample test - sending samples
Mould cavity	One cavity, multi-cavity or same different products be made together
Mould material	P20,2738,2344,718,S136,8407,NAK80,SKD61,H13
Runner system	Hot runner and cold runner
Base material	P20,2738,2344,718,S136,8407,NAK80,SKD61,H13
Finish	Pitting the word, mirror finish, matte surface, striae
Standard	HASCO, DME or dependent upon
Main technology	Milling, grinding, CNC, EDM, wire cutting, carving, EDM, lathes, surface Finish, etc.
Software	CAD,PRO-E,UG Design Time: 1-3 days (normal circumstances)
Product material	ABS,PP,PC,PA6,PA66,TPU,POM,PBT,PVC,HIPS,PMMA,TPE,PC/ABS,TPV,TPO,TPR,EVA,HDPE,LDPE,CPVC,PVDF,PPSU.PPS.
Quality system	ISO9001:2008
Establish time	20days
Equipment	CNC,EDM,Cutting off Machine,plastic machinery,etc plastic suitcase mould zhe jiang

Plastic measuring cup Injection Mould making

1. Samples/Drawing &Requirement from you.

2. Mould design:we will Communicate and Exchange the opinion with you after you place order.

3. Material Purchase:Steel cutting and Mould base tooling.

4. Assembling.

5. Inspection of mould : following and controlling the tooling processing.

6. Mould testing:We will inform you the date.Than will send the sample's inspection report&injection parameters with the sample to you!

7. Your instruction &confirmation for shipment.

8. Ready made mould before packing.

9. We provide any differeny kinds of plastic injection mould, blow mould, silicone mould, die casting mould service.

Plastic measuring cup molding Specification

1. Professional manufacturer,design,production injection mould and stamping mould quality control

2. rich export experience plastic injection mould and stamping mould

3. Reasonable price of design mould

4. Cavities: single or as per your requirements cavity

5. Treatment: S45C Pretreat>25Hrc,And Nitriding

6. Mould Steel: Cavity ,Core and slide: P20 ,2738,2136 available Mold base :LKM available

7. Standard:DEM ,HUSKY,available

8. Hot runner: according to your demand

9. Life time: >300 Thousand Times

10. Package: Plywood case, anti-rust paint

Mold design:

Information you need to provide us

1. If you have drawings, 2D drawings, 3D drawings (preferably in STEP format).

2. If there are no drawings, you need to provide specific length, width, height and weight information. (It’s best to send us samples)

3. Should the mold be sent to your country, or leave the mold in our factory and we will help you produce the product.

4. Mold material requirements, cavity number requirements (you can tell us about the size of your injection molding machine)

5. Product material requirements and product quantity. (You can tell us about the use of the product and we can give you suggestions)

Transaction process:

Mold testing:

Once the mold is complete, I do a mold test. It usually takes about 3-5 days to complete. We need to assemble the mold, adjust the pressure data of the machine, and try production. We need to check whether there are problems during the normal production of the mold and make modifications.

Product packaging

Packaging according to your needs

1.By air ,it takes 3-7 days for delivery .The goods can be shipped by DHL ,Fedex ,UPS .

2.By sea ,the delivery time is based on your port .

To South East Asian Countries takes about 5-12 days

To Middle east countries takes about 18-25 days

To European countries takes about 20-28 days

To American countries takes about 28-35 days

To Australia takes about 10-15 days

To African countries takes about 30-35 days.

Factory

Video-1: (Factory Video)

Video-2: (Injection Molding)

Video-3: (Blow molding)

Video-4: (Blow molding)

Video-5: (Roll molding)

Customer satisfaction is our most important goal. We focus on communication and cooperation with our customers, always pay attention to their needs and provide quick response and quality customer service. Our injection production mold factory is committed to establishing long-term relationships and ensuring that our customers receive the best after-sales service during the purchase and use of our products, and we will definitely do our best to solve any problems for our customers.

FAQ

1. Who are we?

We are based in Zhejiang, China, start from 2014,sell to North America(30.00%),Southern Europe(10.00%),Northern.

Europe(10.00%),Central America(10.00%),Western Europe(10.00%),Mid East(10.00%),Eastern Europe(10.00%),South America(10.00%). There are total about 51-100 people in our office.

2. How can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment.

3. What can you buy from us?

Mould,Plastic Product, Metal Product,Dental Product,CNC machining.

4. Why should you buy from us not from other suppliers?

Ningbo P&M Plastic Metal Product Co., Ltd. We main do all kinds of 3d design, 3d printing and plastic metal molds tooling and products. We have our own engineer and factory. One-stop supply:3d design - 3d printing - mold making - plastic injection.

5. What services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU;

Accepted Payment Currency:USD,EUR;

Accepted Payment Type: T/T,L/C,PayPal,Western Union,Escrow;

Language Spoken:English,Chinese,Spanish,French,Russian.

6. What are the characteristics of your service?

1. Your inquiry related to our products or prices will be replied within 24hours.

2. Welltrained and experienced staffs to answer all your enquiries in fluent English.

3. Offering the support to solve the problem in the application or selling period.

4. Competitive prices based on same quality.

5. Guarantee samples quality same as mass production quality.
