Bottle Cage Molding

These various kettle racks come in different shapes and materials, meeting the needs of different scenes and crowds. Injection mold manufacturers play a crucial role in it. For Bottle Cage molds, Ningbo (P&M) Plastic Metal Products Co., Ltd. has 18 years of mold manufacturing technology and 10 years of export experience. We provide professional one-stop customized mold services and are a professional plastic mold manufacturer. We can use injection molding, blow molding, die-casting, and rotational molding.

P&M Bottle Cage molding Introduction

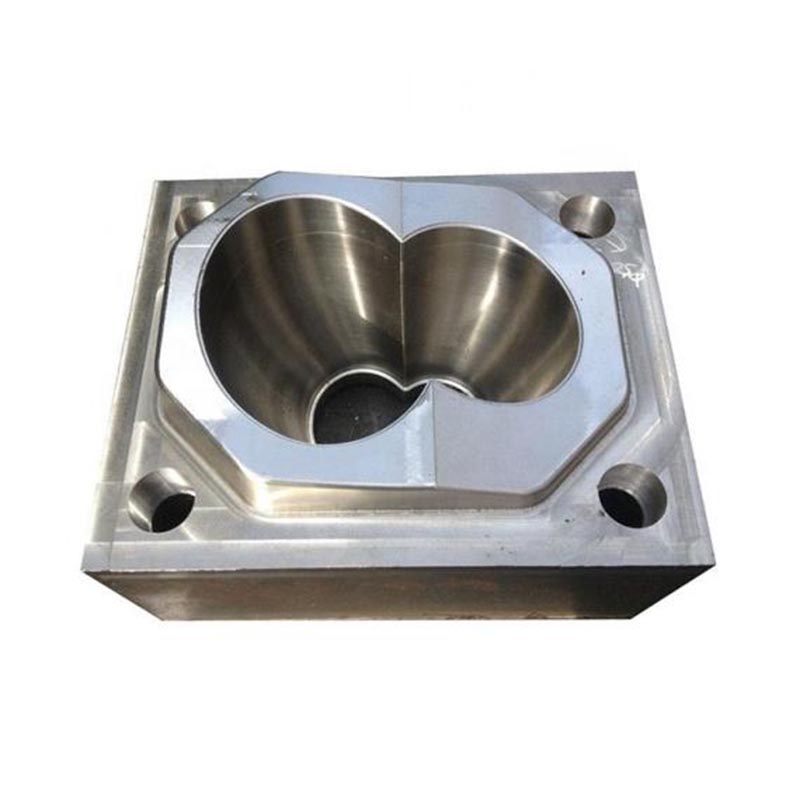

(1) Material selection

The selection of materials is the primary key to manufacturing injection molds for water bottle racks. Common materials include various types of steel, such as P20, 718, NAK80 and other pre hardened steels, as well as hot work die steel H13. P20 steel has good cutting and polishing properties, and is relatively affordable. It is widely used in the manufacturing of water bottle rack molds with moderate requirements for mold accuracy and lifespan. Like some ordinary household bicycle kettle holder molds, using P20 steel can meet production needs and achieve mass production at a lower cost. 718 steel, on the basis of P20 steel, further enhances its hardness and wear resistance, extending the service life of the mold. It is suitable for producing kettle racks with high quality requirements and frequent use, such as those used in professional cycling events. Using 718 steel can ensure that the mold remains in good condition even under high-intensity use.

(2) Precise design

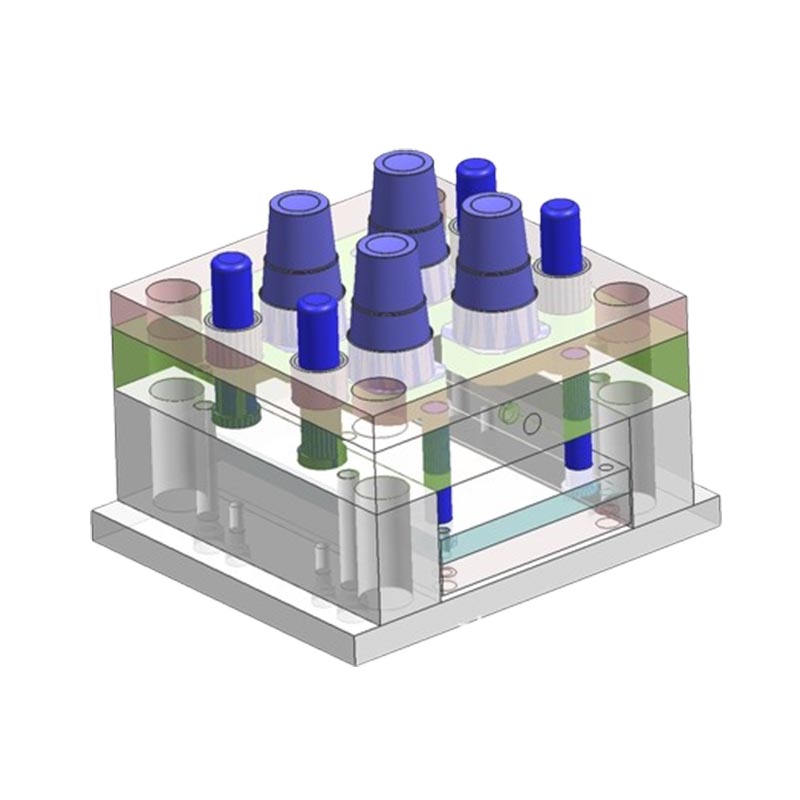

Mold structure design is the core process of injection mold manufacturing, and its rationality directly affects the molding quality and production efficiency of the kettle rack. The design of the cavity layout needs to fully consider the flow characteristics of the plastic during the injection molding process to ensure that the plastic can be evenly filled into various parts of the mold. For kettle racks with complex shapes, it may be necessary to adopt a multi cavity design. By arranging the positions and quantities of cavities reasonably, production efficiency can be improved while ensuring consistent quality of each kettle rack. At the same time, it is necessary to optimize the position and size of the sprue so that the plastic can flow quickly and smoothly when injected into the mold cavity, avoiding defects such as weld marks and material shortages.

The selection of parting surface is also crucial, as it directly affects the opening and closing of the mold, the demolding of plastic parts, and the manufacturing cost of the mold. A carefully designed mold structure can not only improve the molding quality of the kettle rack, but also reduce the scrap rate in the production process, lower production costs, and improve production efficiency.

(3) Rigorous manufacturing process

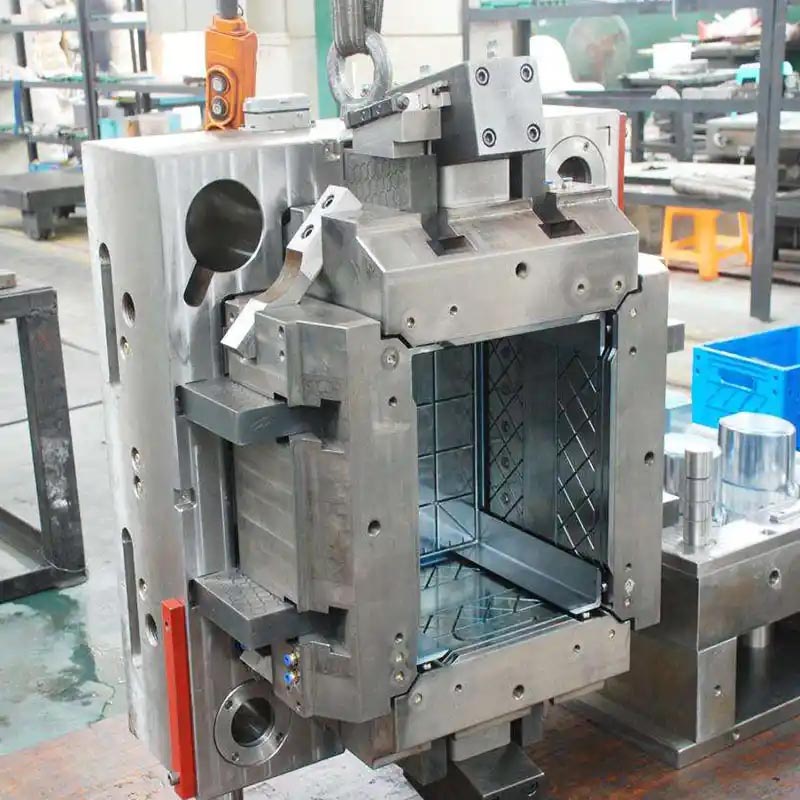

From raw material processing to mold forming, every manufacturing step needs to be strictly controlled and cannot tolerate any carelessness. To manufacture injection molds for water bottle racks, the first step is to perform pre-processing such as cutting and forging on the raw materials to obtain the appropriate billet size and microstructure. During the cutting process, high-precision cutting equipment is required to ensure that the dimensional accuracy of the billet meets the design requirements. Forging can improve the internal structure of materials, enhance their strength and toughness.

Subsequently, mechanical processing is carried out, including turning, milling, drilling, grinding and other processes.

The heat treatment process is also indispensable as it can significantly improve the performance of mold materials. By quenching and tempering treatment, the hardness, strength, and wear resistance of the mold can be improved, and the service life of the mold can be extended.

P&M Bottle Cage molding Parameter (Specification)

P&M Bottle Cage molding Feature And Application

The kettle rack, this seemingly ordinary small object, actually has rich and diverse functions, playing an irreplaceable role in many scenes. From a functional perspective, its main function is to provide stable support and placement space, ensuring that the kettle can be properly placed in various environments. Regardless of the bumps on the bicycle during cycling, the water bottle holder can firmly support the water bottle with its stable structure, preventing it from falling off.

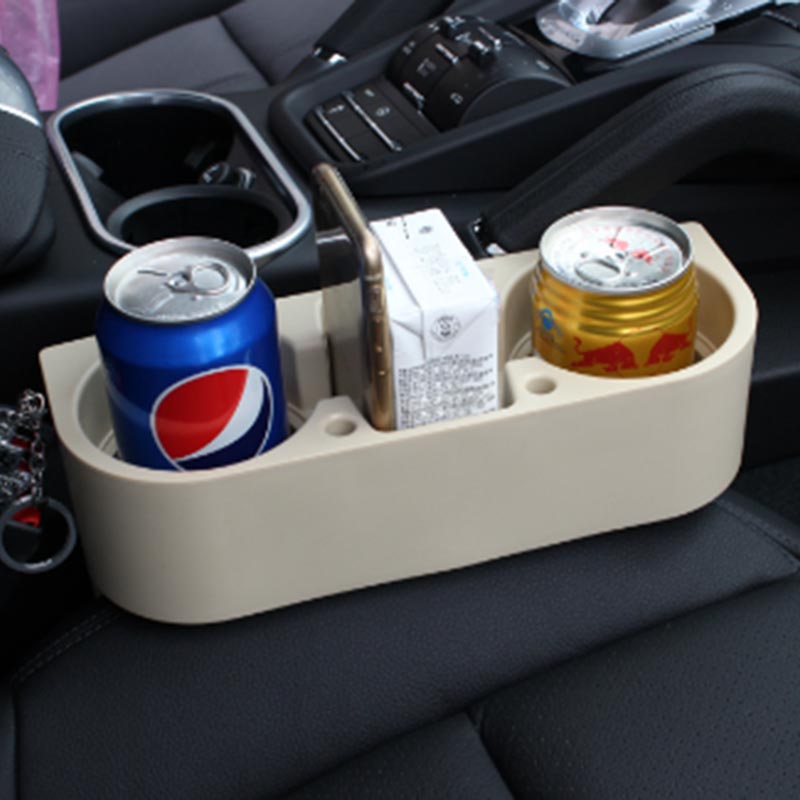

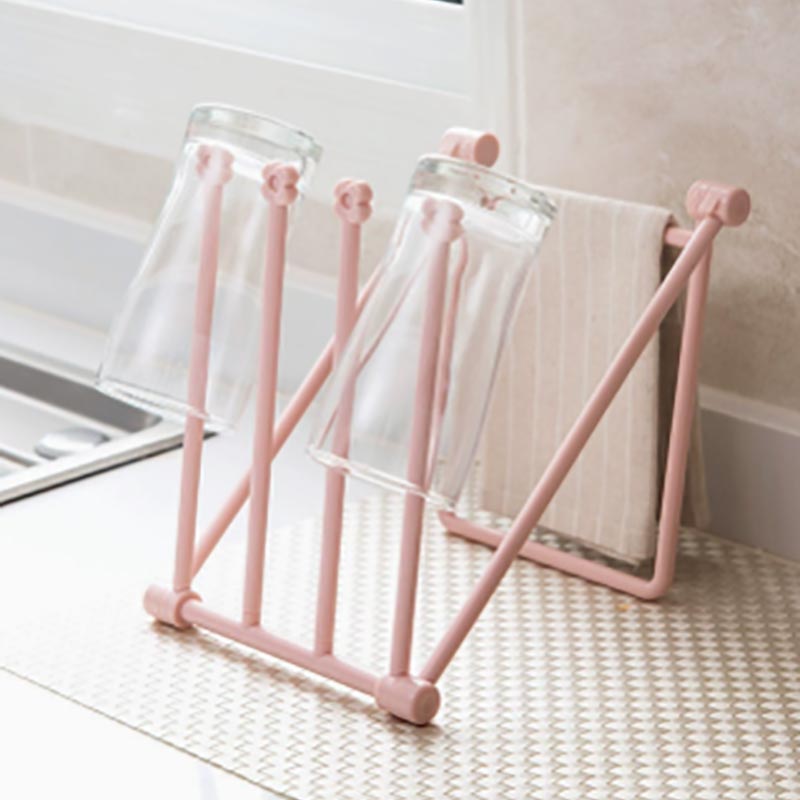

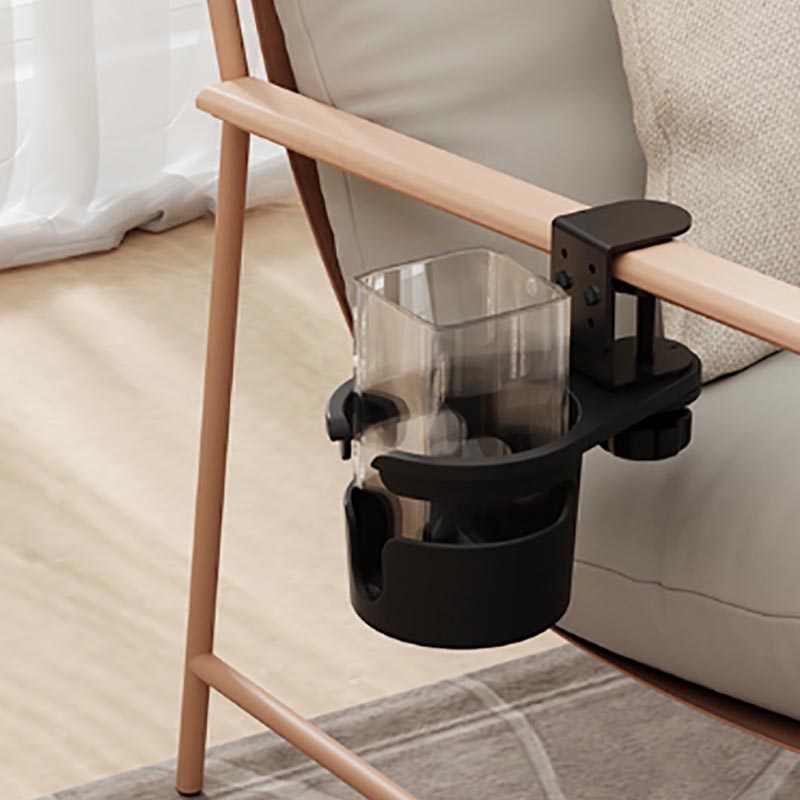

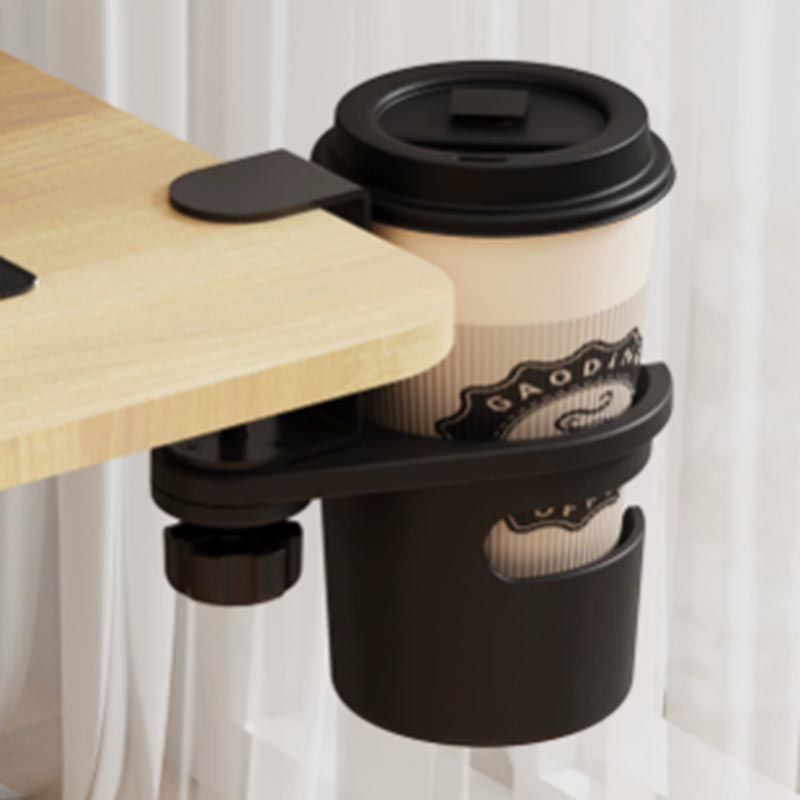

In daily life scenes, the figure of kettle racks is everywhere. In the home, it can be installed on the wall of the kitchen to facilitate the placement of commonly used kettles, saving space and making the kitchen look more tidy and orderly. In the office, the desktop style kettle rack can firmly fix the kettle on the desk, avoiding water stains caused by accidentally knocking over the kettle and affecting work.

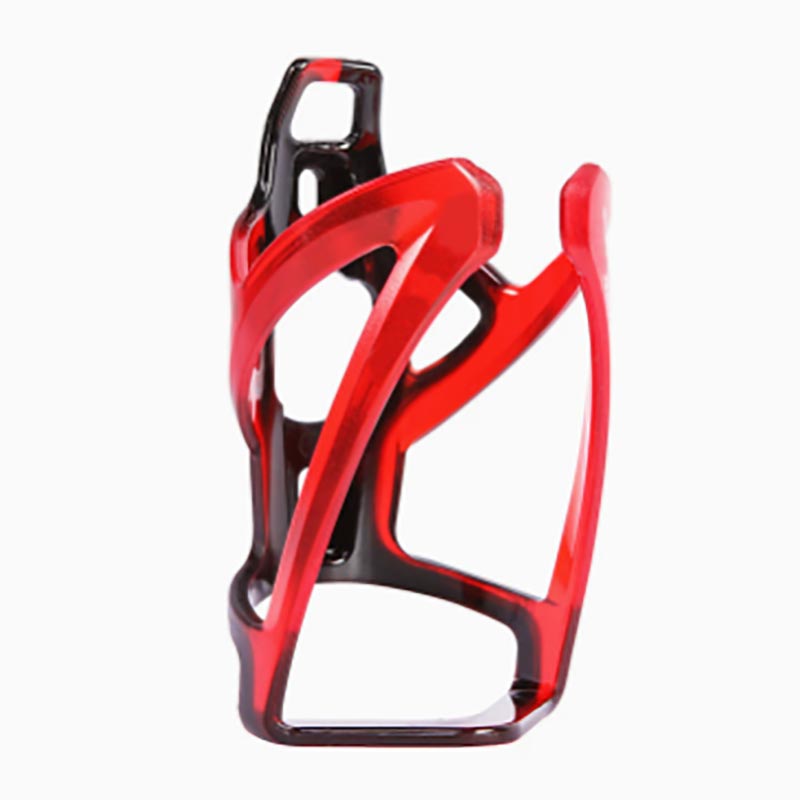

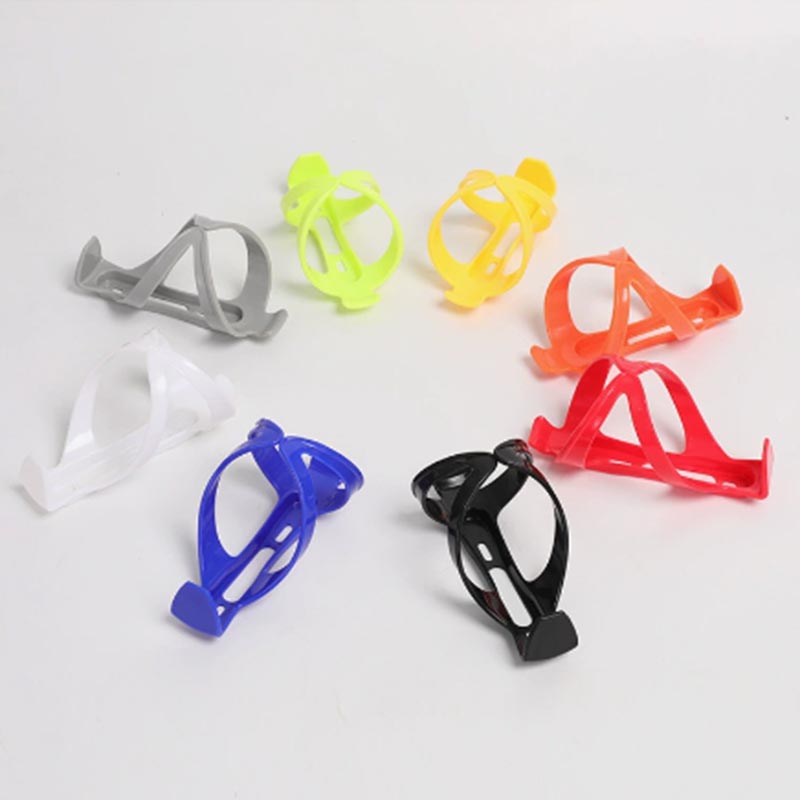

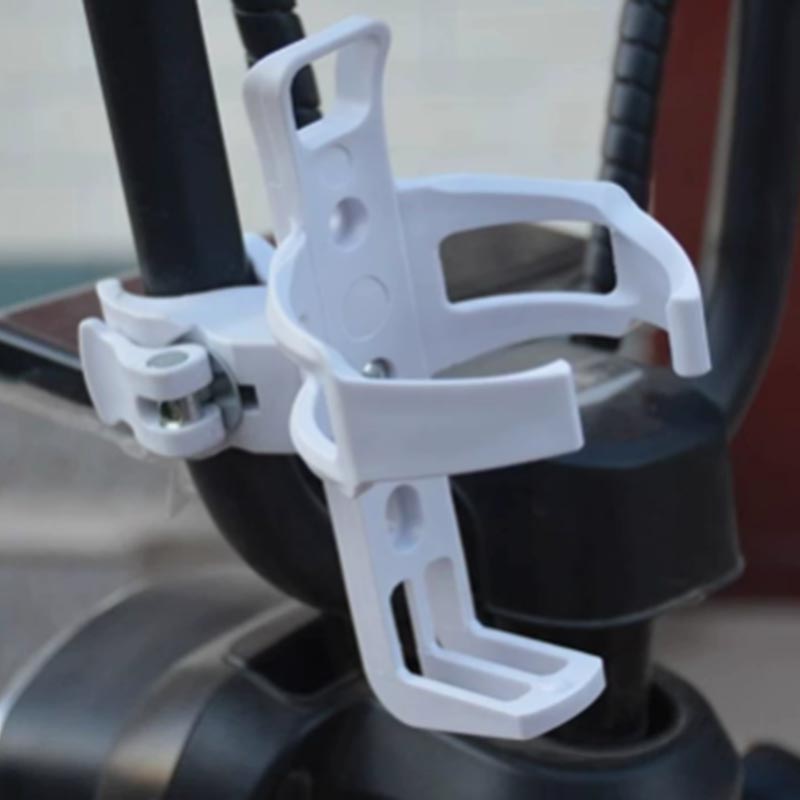

In the outdoor field, kettle racks have become indispensable equipment. For cycling enthusiasts, a water bottle holder is an important accessory on a bicycle. During long-distance cycling, riders need to frequently replenish their water. The water bottle rack installed on the bicycle frame allows them to easily reach for and place the water bottle without stopping, greatly improving the convenience and comfort of cycling. Different types of bicycles, such as mountain bikes, road bikes, and station wagons, are equipped with their own unique water bottle racks. The water bottle rack of mountain bikes is usually more sturdy and durable, and can adapt to rough and uneven mountain roads for riding; The water bottle rack of road bikes pays more attention to lightweight and aerodynamic design to reduce resistance during riding.

The application scenarios of kettle racks are very extensive. They not only meet people's basic needs in daily life, but also provide strong support for various outdoor activities.

P&M Bottle Cage molding Details

Customization Process

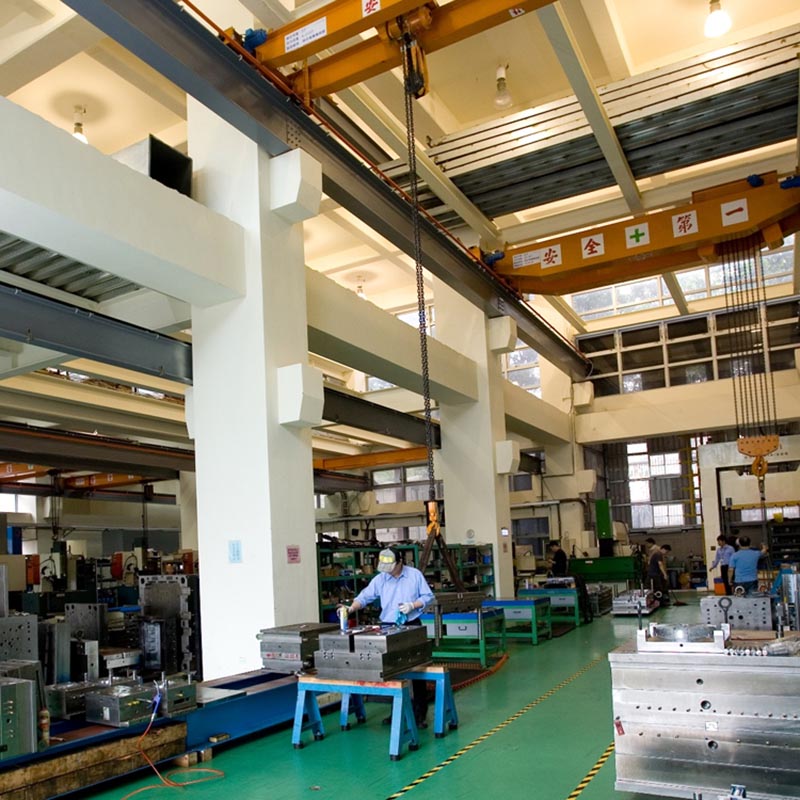

Factory&About US

NingBo Plastic Metal Product Co.,Ltd (P&M) is located in Yuyao, the so-called Mould City, Plastic Kingdom, in the southern tip of Hangzhou Bay Bridge,north of Shanghai, the east of Ningbo Port,tight double line of State Road 329 on land, sea and air trafic into a network to facilitate transport.

By the abundant technical strength,scientific management methods and good after-sales service, product deeply trusted and welcomed by customers from all over the world. P&M holds improved system of development and production, to achieve mold design, plastic products manufacturing and automatic production. Our main products is design and manufacturing of plastic mold, plastic product, metal product. 90% products of our enterprise are exported to America, Europe, Germany, Japan, Australia, etc. For many years, the company has been committed to the research of raw materials. The company has its own trademark and dozens of patents, providing more convenient technical support for mold making and product production. P&M started domestic business from 2008,named Shundi Mould Factory. And opened the international market from 2014. We always adhere to the principles of quality first and time first. While providing customers with the highest quality products, try to maximize the production efficiency and shorten production time. We are proud to tell every customer that our company has not lost any customer since its establishment.If there is a problem with the product, we will seek a solution actively and take responsibility to the end.

P&M adheres to market-oriented to the quanlity of life and focus on quality service and continuous development of new products,determined to establish a better corporate image,and our friends at home and abroad to carry a wide range of business exchanges and cooperation, create brilliant.

Packing

Packaging according to your needs

1. By air ,it takes 3-7 days for delivery.

The goods can be shipped by DHL , Fedex , UPS .

2. By sea ,the delivery time is based on your port.

To South East Asian Countries takes about 5-12 days.

To Middle east countries takes about 18-25 days.

To European countries takes about 20-28 days.

To American countries takes about 28-35 days.

To Australia takes about 10-15 days.

To African countries takes about 30-35 days.

P&M Bottle Cage, centered around children, balances safety, health, and fun, aiming to add a bright color to children's beautiful childhood. We look forward to working together with you to serve our children.

The path of a child's growth is paved with bricks and tiles.
