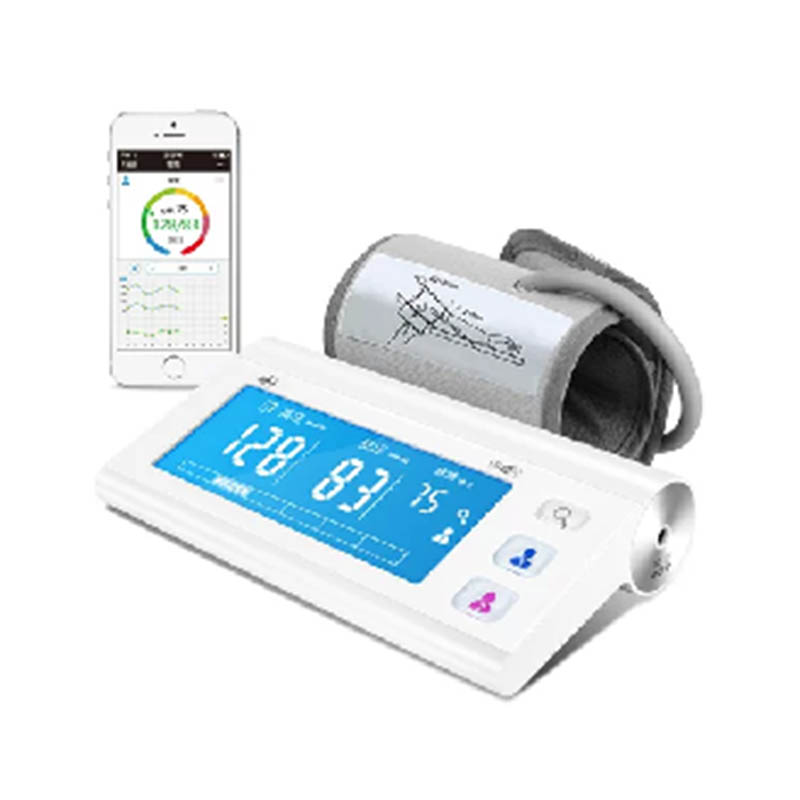

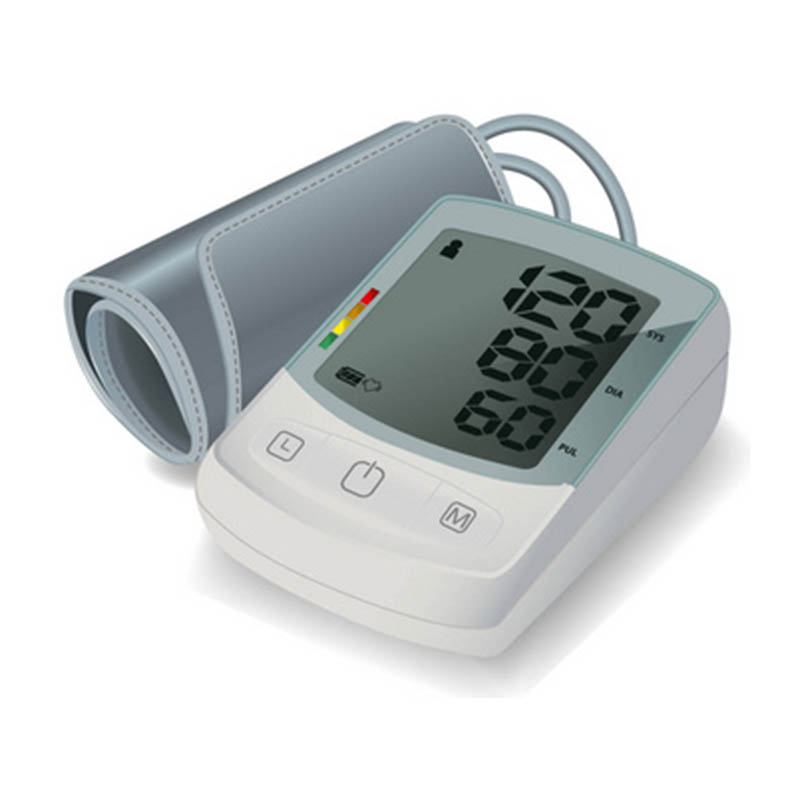

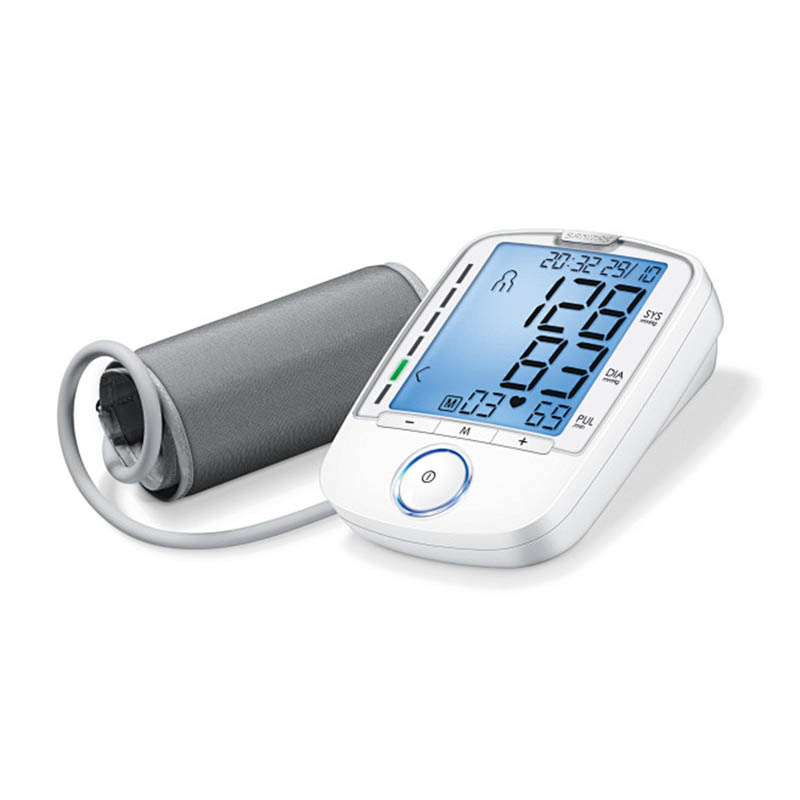

Blood Pressure Monitor Moulding

We have design and production capabilities related to blood pressure monitors, such as: CAD design, mold manufacturing, injection molding, plastic product production, assembly and other technologies. In addition, our company has established cooperative relationships with plastic raw material suppliers, printing manufacturers, etc. to ensure the supply of raw materials and printing quality. Through our rich experience and perfect supply chain, our company can provide customers with high-quality customized blood pressure monitor products to meet their specific needs. At the same time, we have 10 years of professional foreign trade service experience, understand the foreign trade process, and better serve customers. For blood pressure monitor products, we can make corresponding plastic parts, which is mainly done through injection molds.

In terms of materials, because the materials of blood pressure monitor are special, medical-grade materials are generally required, such as medical-grade PP materials and medical-grade ABS materials. We can make the shell of the blood pressure monitor according to the materials the customer wants. In short, as long as you want the material, we can provide it. We have a variety of raw material suppliers, and we can provide raw materials of any brand and model. As long as the customer provides the purpose of the product, we can choose the most suitable material according to the purpose of the product. Even modified plastic materials/special plastic materials, we can provide them. For example, the screen of some blood pressure monitor products can be adjusted by touch. This screen requires conductive PMMA material, which is a special modified material we can provide.

Mold design and structural features:

Blood pressure monitor shell molds usually adopt a multi-parting surface design (such as single cavity or multi-cavity), and achieve rapid positioning and buffering through components such as telescopic rods, positioning plates, buffer springs, etc. to avoid deformation of the workpiece

Example-1: Push the slide bar to adjust the positioning plate through the threaded rod, and combine the compression spring and buffer plate to reduce the impact force

Example-2: The button mold uses a heat conduction plate to accelerate cooling, and drives the eccentric wheel to eject the finished product through the motor to improve demolding efficiency

Material selection: Mold material: commonly used imported steels such as 738H, S136, NAK80, etc., taking into account wear resistance, corrosion resistance and high precision requirements

Mold runner system selection: We can choose hot runner/cold runner according to the customer's design requirements/budget requirements. (Hot runner: expensive, but the production efficiency and product quality will be higher. Cold runner: cheap, the production efficiency will be slower, there will be feeding points and material handles, and raw materials will be wasted.)

Mold processing technology and equipment:

1. Core equipment: Processing equipment includes CNC, spark machine, wire cutting, injection molding machine, etc. Precision injection molding requires temperature control (high temperature tempering mold steel) and surface treatment (polishing to Ra0.4μm or less)

2. Process type:

Injection molding: suitable for complex structure shells, and optimizes filling efficiency through runner design.

Micro-foaming technology: reduce internal stress and improve product lightweight performance.

Two-color injection molding: used for buttons and other parts to achieve multi-functional integration (such as anti-slip texture)

3. Mold production time: Normal mold production time is about 25-30 days. For complex design parts, the corresponding mold will also be complex, and the time will be appropriately extended.

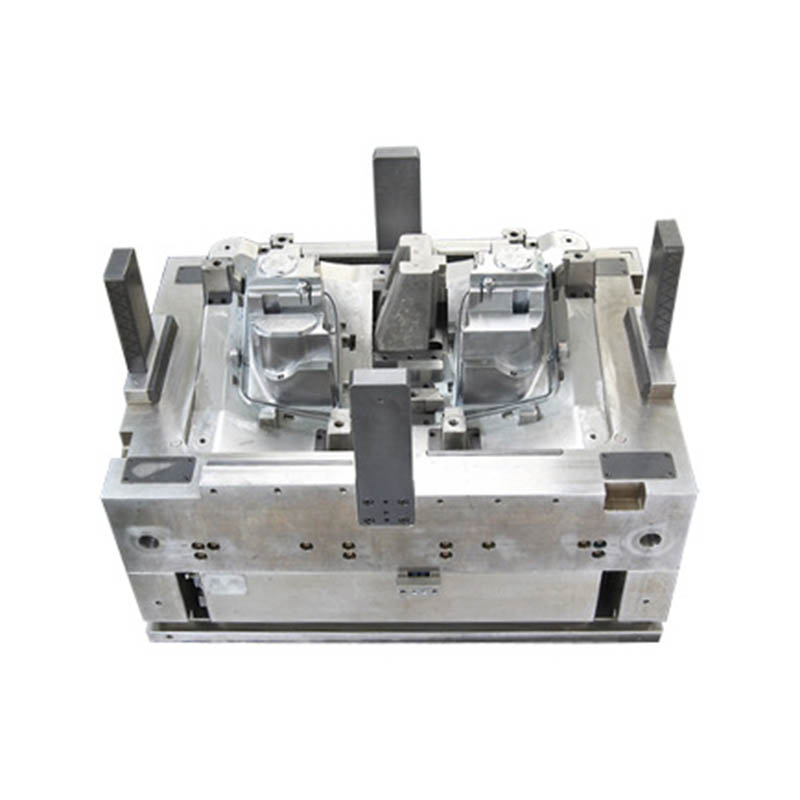

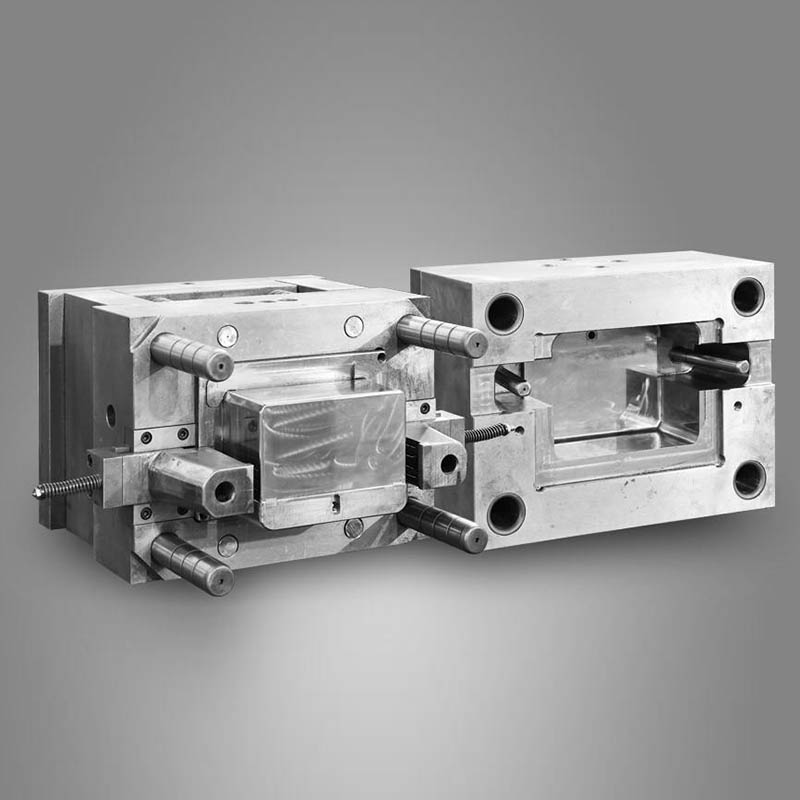

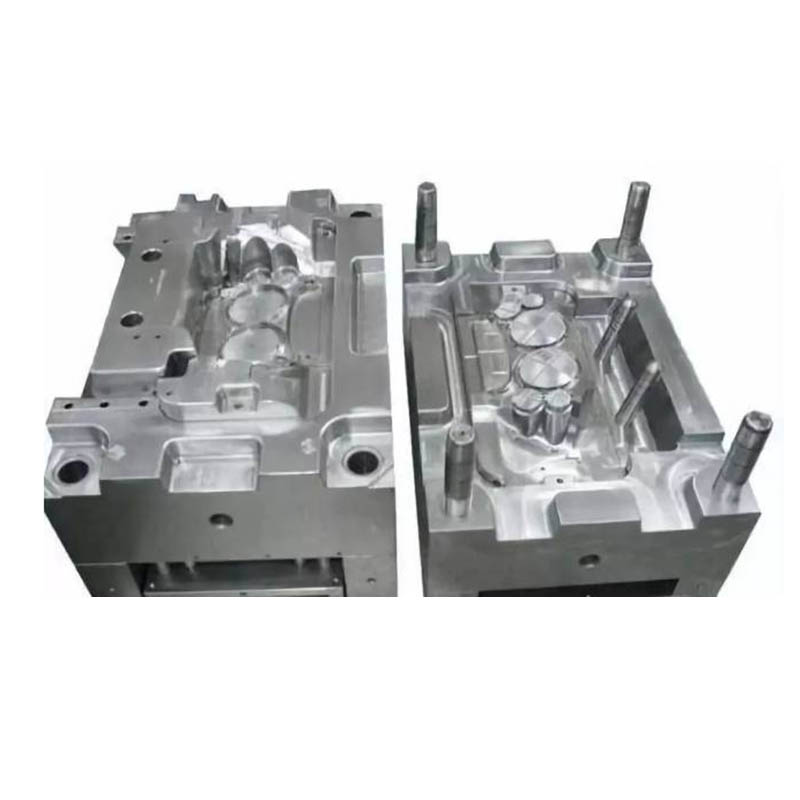

Blood pressure monitor Mold

We are a blood pressure monitor mold manufacturer, providing high-quality blood pressure monitor mold manufacturing. As long as you want to customize/develop blood pressure monitor products, you can find us. We have professional injection mold design and mature manufacturing technology, providing you with one-stop service, from product design-mold making-product production-product packaging-product transportation, we can help you in every link. As long as you come to us, we will provide you with the ultimate service and satisfy you in terms of product quality, production time, information dialogue, etc.

Plastic Injection Mould making

Plastic molding specifications

Mold design:

Transaction process:

Mold testing:

Product packaging

Factory

We are Custom Plastic Mold factory. Our factory is plastic injection mold maker. we has 17 years of experience in professional custom plastic mold and 10 years of foreign trade experience. We are custom Plastic Mold supplier. We can provide custom Plastic Mold service. Our factory can make the Injection molded plastic parts, and the quality of the products will satisfy you.

We have more than 50 high-end machines and hundreds of engineers and designers. We can provide one-stop service, from product design - mold making - product production - product packaging - transportation. We have a complete production chain. We can meet all your requirements.

Services we provide:

Professional custom mold service, Plastic mold design and manufacturing .plastic product production, product design, mold design, blow mold customization, rotational mold customization, die-casting mold customization. 3D printing services, CNC manufacturing services, product packaging, customized packaging, shipping services.

We always adhere to the principles of quality first and time first. While providing customers with the highest quality products, try to maximize the production efficiency and shorten production time. We are proud to tell every customer that our company has not lost any customer since its establishment.If there is a problem with the product, we will seek a solution actively and take responsibility to the end.

FAQ

Q1: Are you trading company or manufacturer ?

A: We are manufacturers.

Q2. When can I get the quotation?

A: We usually quote within 2 days after we get your inquiry.

If you are very urgent, please call us or tell us in your email so that we can quote for you first.

Q3. How long is the lead-time for mold?

A: It all depends on the products' size and complexity. Normally, the lead time is 25 days.

Q4. I have no 3D drawing, how should I start the new project?

A: You can supply us a molding sample, we will help you finish the 3D drawing design.

Q5. Before shipment, how to make sure the products quality?

A: If you don't come to our factory and also don't have the third party for inspection, we will be as your inspection worker.

We will supply you a video for production process detail include process report, products size structure and surface detail, packing detail and so on.

Q6. What is your payment terms?

A: Mold Payment: 40% deposit by T/T in advance, 30% second mold payment before sending out the first trial samples, 30% mold balance after you agree the final samples.

B:Production Payment: 50% deposit in advance, 50% before sending out the final goods.

Q7: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit for best quality products.

2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
