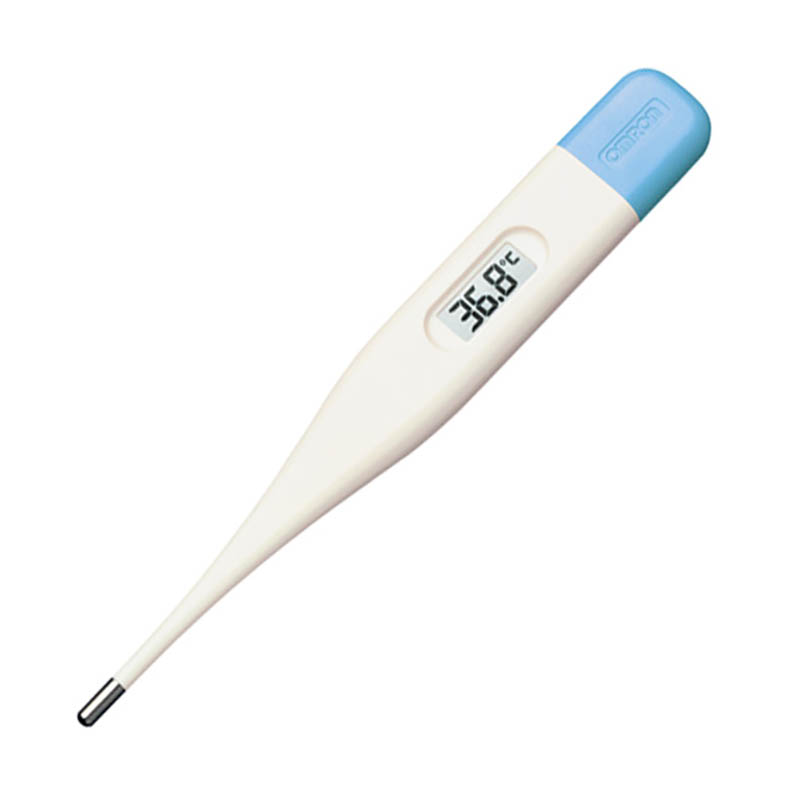

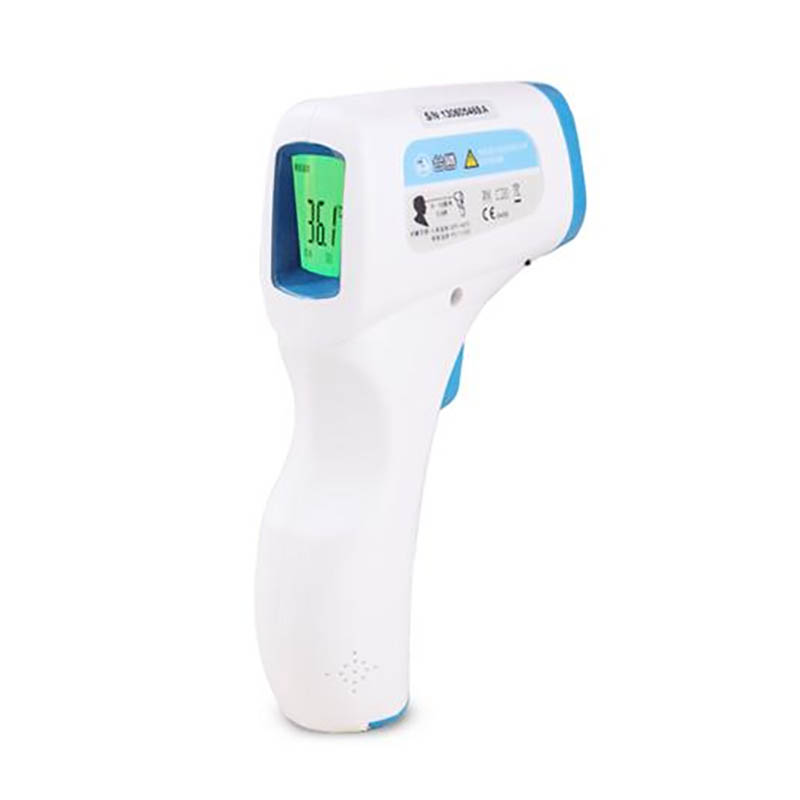

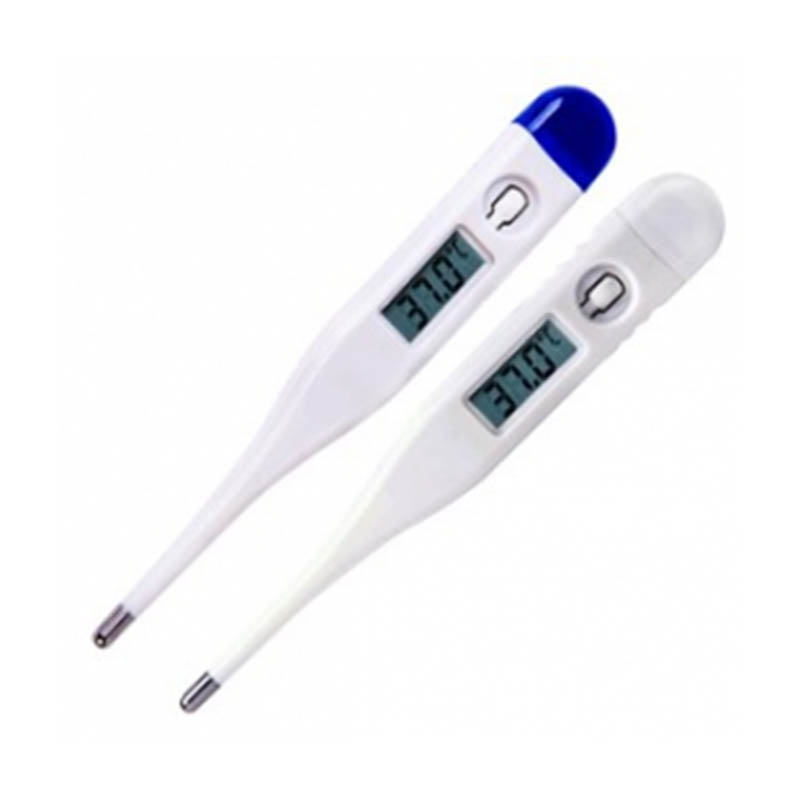

Electronic Thermometer Moulding

Through our rich experience and perfect supply chain, our company can provide customers with high-quality customized electronic thermometer products to meet their specific needs. At the same time, we have 10 years of professional foreign trade service experience, understand the foreign trade process, and better serve our customers. For electronic thermometer products, we can make corresponding plastic parts, which is mainly done through injection molds.

The production of injection molds for electronic thermometers needs to be combined with the high precision, sealing and biocompatibility requirements of medical equipment

1. Core design points

1) Parting and slider structure design:

The thermometer shell often contains a multi-directional undercut structure, and a combination of a front mold slider (T-slot or bent pin drive) and a rear mold slider is required. For example, the boss and hook at the sensor head need to be designed with sliders in different areas, and the front mold tunnel slider can solve the need for no clip line on the appearance.

The parting surface needs to avoid the appearance surface. The gate is usually selected in the battery cover groove or hidden area. Point gate or diving injection is used to avoid affecting the appearance.

2. Precision core and cooling system:

Slender cores such as sensor installation holes (such as Φ1.6mm) need to use high wear-resistant steel (such as NAK80), and built-in copper cooling rods to improve heat dissipation efficiency and prevent deformation

The four corners of the mold core are designed with 5° tiger's mouth positioning, and the guide pin and guide sleeve are used to ensure the mold clamping accuracy ≤0.01mm

3. Hot runner and ejection optimization:

The hot runner system is recommended for multi-cavity molds to reduce waste and ensure melt uniformity.

The ejection mechanism needs to avoid scratching transparent parts. Z-shaped ejector and robot collaborative demolding are recommended

4. Material and process selection

1) Mold steel:

718H, S136 (strong corrosion resistance), NAK80 (high polishing) are preferred, and key inserts need vacuum quenching.

Medical-grade components must comply with ISO 13485 certification to ensure biocompatibility

2) Injection molding parameter control:

Use 90-700T injection molding machine, and the mold temperature controller accurately controls the temperature (water circulation or oil circulation) to reduce shrinkage and deformation.

The transparent shell requires a dust-free workshop (100,000-level cleanliness) to prevent impurities from affecting light transmittance

5. Technical difficulties and solutions

1) Sealing and waterproof design:

Problem: The battery cover groove and the sealing ring require a gap of ≤0.05mm, which is prone to leakage due to uneven shrinkage.

Solution: Split insert design, reserve mold repair margin, and monitor dimensional stability through SPC process control

2) Sensor positioning accuracy:

Problem: The metal temperature sensor head and the plastic part are easy to deviate.

Solution: Pre-embed the positioning pin in the mold, combined with the liquid silicone (LSR) secondary injection molding process to improve the bonding strength

3) Automated production adaptation

Problem: The efficiency of manual inspection of small transparent parts is low.

Solution: Integrate CCD vision system and robotic arm to realize automatic sorting and defect recognition

6. Mold runner system selection

There are mainly cold runner and hot runner options, which need to be selected according to the customer's budget and product design.

Cold runner system: cheap, product design requirements cannot be too high, there are raw material handles, and some feed ports require manual cutting

Hot runner system: expensive, product design can achieve the customer's effect, there is no raw material handle, saving raw materials

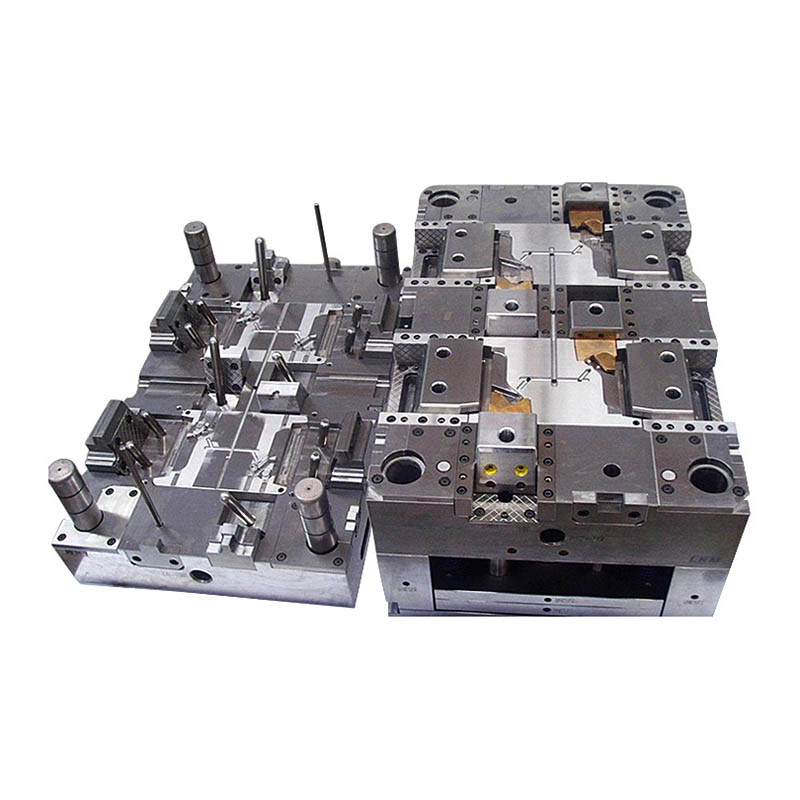

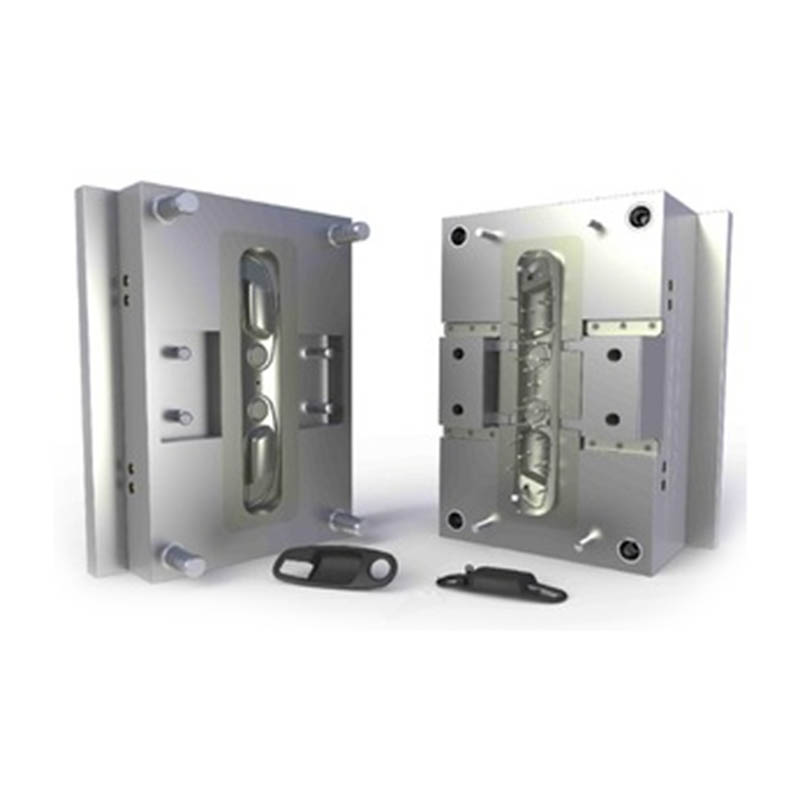

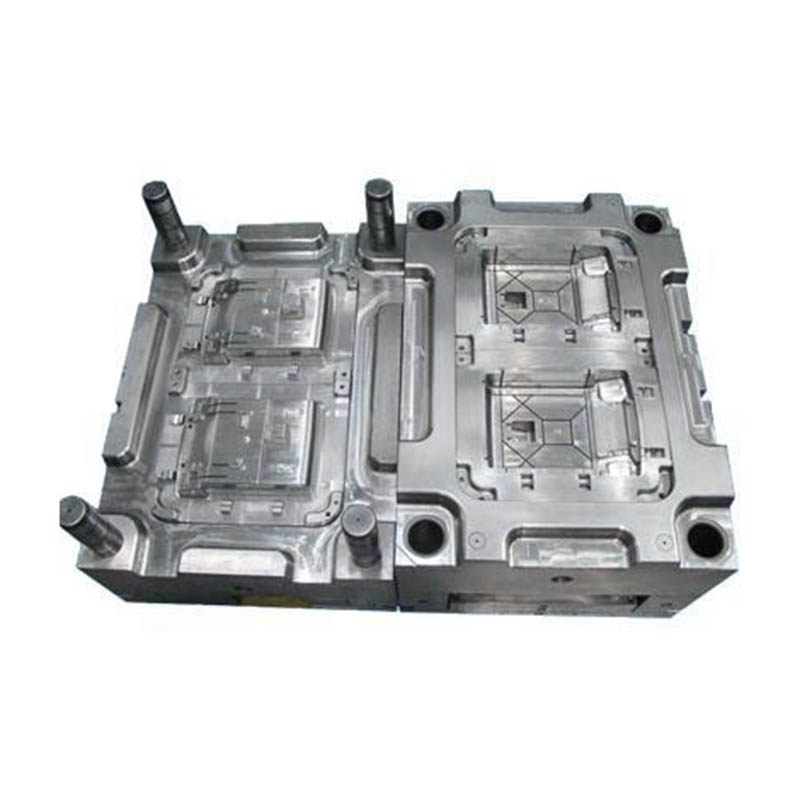

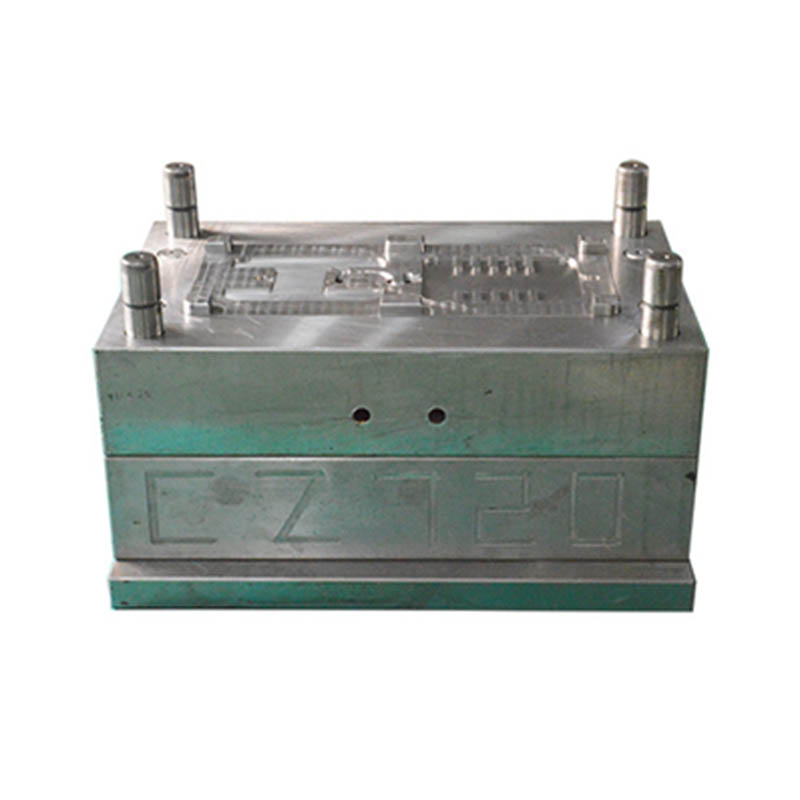

Electronic thermometer Mold

We are a electronic thermometer mold manufacturer, providing high-quality electronic thermometer mold manufacturing. As long as you want to customize/develop electronic thermometer products, you can find us. We have professional injection mold design and mature manufacturing technology, providing you with one-stop service, from product design-mold making-product production-product packaging-product transportation, we can help you in every link. As long as you come to us, we will provide you with the ultimate service and satisfy you in terms of product quality, production time, information dialogue, etc.

Plastic Injection Mould making

Plastic molding specifications

Mold design:

Transaction process:

Mold testing:

Product packaging

Factory

We are Custom Plastic Mold factory. Our factory is plastic injection mold maker. we has 17 years of experience in professional custom plastic mold and 10 years of foreign trade experience. We are custom Plastic Mold supplier. We can provide custom Plastic Mold service. Our factory can make the Injection molded plastic parts, and the quality of the products will satisfy you.

We have more than 50 high-end machines and hundreds of engineers and designers. We can provide one-stop service, from product design - mold making - product production - product packaging - transportation. We have a complete production chain. We can meet all your requirements.

Services we provide:

Professional custom mold service, Plastic mold design and manufacturing .plastic product production, product design, mold design, blow mold customization, rotational mold customization, die-casting mold customization. 3D printing services, CNC manufacturing services, product packaging, customized packaging, shipping services.

We always adhere to the principles of quality first and time first. While providing customers with the highest quality products, try to maximize the production efficiency and shorten production time. We are proud to tell every customer that our company has not lost any customer since its establishment.If there is a problem with the product, we will seek a solution actively and take responsibility to the end.
