Medium Frequency Therapy Device Moulding

We have design and production capabilities related to medium frequency therapeutic instruments, such as: CAD design, mold manufacturing, injection molding, plastic product production, assembly and other technologies. In addition, our company has established cooperative relationships with plastic raw material suppliers, printing manufacturers, etc. to ensure the supply of raw materials and printing quality. Through our rich experience and perfect supply chain, our company can provide customers with high-quality customized medium frequency therapeutic instrument products to meet their specific needs. At the same time, we have 10 years of professional foreign trade service experience, understand the foreign trade process, and better serve our customers. For medium frequency therapeutic instrument products, we can make corresponding plastic parts, which is mainly done through injection molds.

In terms of materials, for the shell: choose medical-grade ABS or PC, which must pass ISO13485 certification and have impact resistance and biocompatibility. For buttons: silicone, support multi-color molding, conductive printing and other processes, and adapt to the needs of the therapeutic instrument operation panel. We can make the shell of the medium frequency therapeutic instrument according to the material the customer wants. In short, as long as you want the material, we can provide it. We have a variety of raw material suppliers, and any brand and model of raw materials can be provided. As long as the customer provides the purpose of the product, we can choose the most suitable material according to the purpose of the product. Even modified plastic materials/special plastic materials, we can provide them. For example, the screen of some medium frequency therapeutic instruments can adjust the mode by touch. This screen requires conductive PMMA material, which is a special modified material we can provide.

Mold design and structural features:

1. Parting surface and layout design:

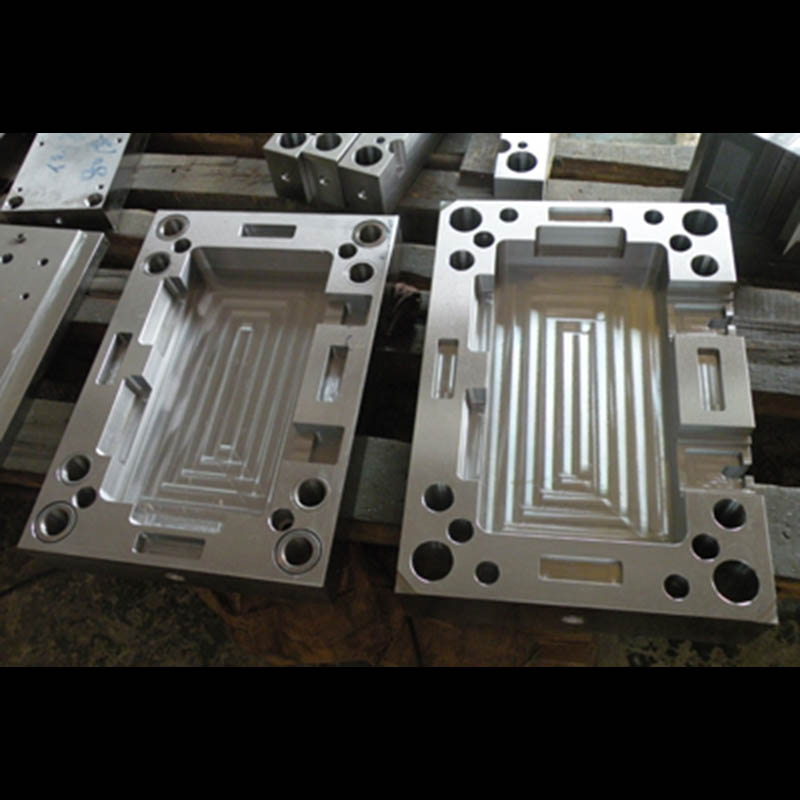

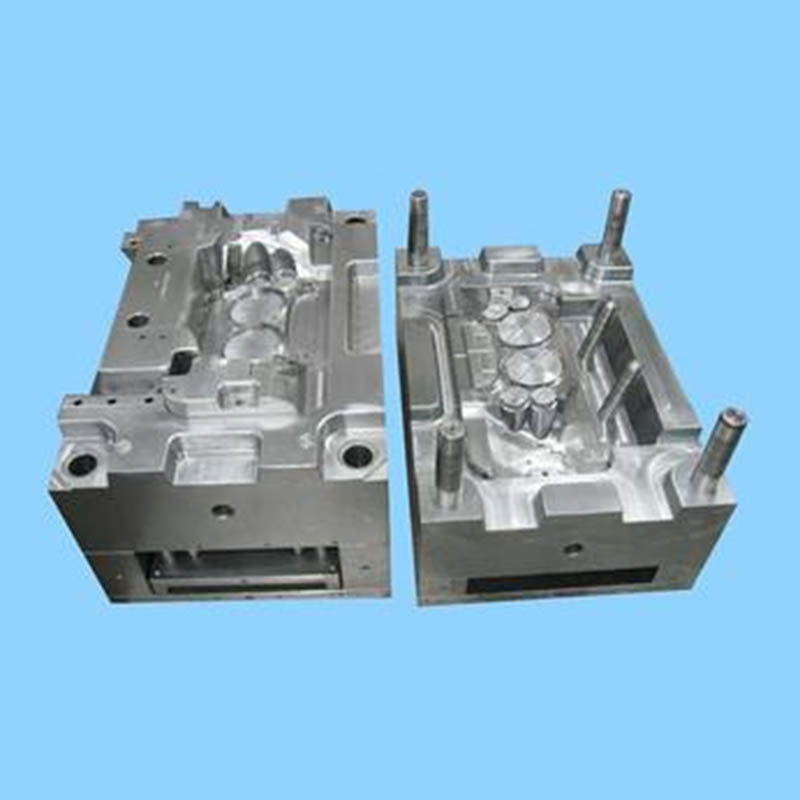

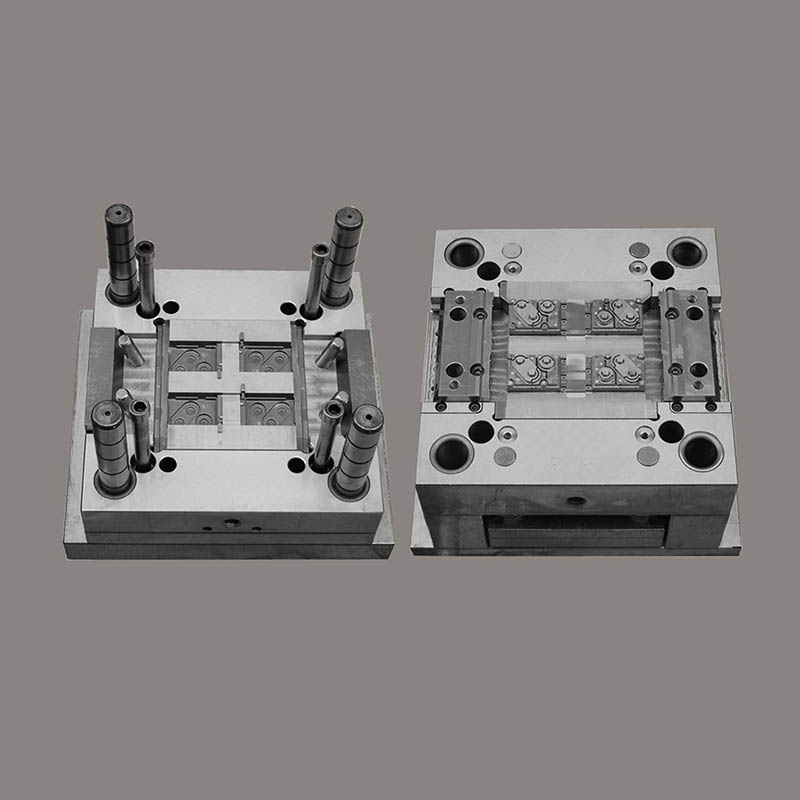

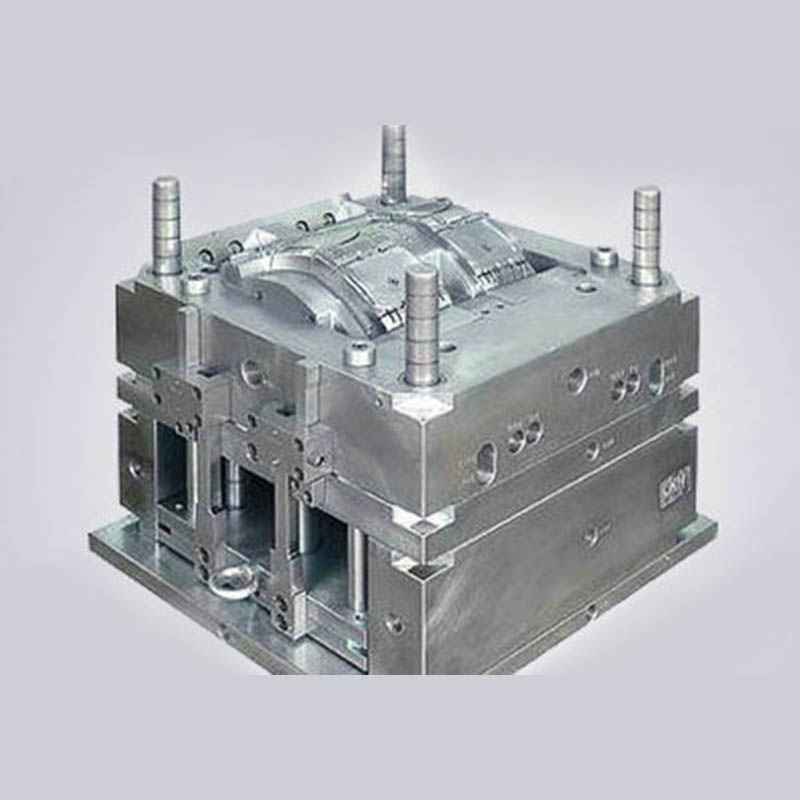

The medium frequency therapeutic device shell mold often adopts a three-plate mold or a two-plate mold design. For example, the ABS surface shell mold adopts a two-plate mold structure, 1×2 layout, diving port glue feeding method, and is equipped with multiple inclined top structures to ensure the demolding stability of complex curved surfaces. The bottom shell mold uses a three-plate mold design, fine water inlet glue feeding, clear parting steps, and complete accessories.

2. Special structure optimization:

Slant top design: For buttons, display screens and other areas, the stroke of the tilt top needs to be accurately calculated (3mm for small parts and more than 5mm for large parts) to avoid scraping glue during demolding

Exhaust and cooling: The mold needs to optimize the exhaust system (such as increasing the exhaust hole size to 0.02mm), and use a heat-conducting copper plate to accelerate cooling to prevent product shrinkage or burning

Material selection and processing technology:

1. Mold steel: NAK80, S136 and other high-hardness, corrosion-resistant steels are preferred to ensure that the mold life is ≥ 600,000 times, and the surface is polished to Ra0.4μm or less to meet the finish requirements of medical equipment

2. Core technology:

Injection molding: Use multi-stage injection technology to control pressure and speed in sections to avoid obvious weld lines.

Micro-foaming technology: used for internal bracket parts to reduce weight while maintaining strength.

Two-color injection molding: integrated soft rubber anti-slip layer and hard shell to improve grip comfort

Quality control standards:

1. Accuracy requirements: Dimensional tolerance: ±0.01mm (core structural parts), parting surface clearance ≤0.02mm.

Surface treatment: The textured surface needs to be compared with the color plate to avoid texture differences; there are no scratches or pitting in the mirror area

2. Functional test:

Cycle test: The mold needs to pass ≥1000 continuous injection molding verification without mold jamming or wear.

Medical compliance: The finished product complies with the YY/T 0466-2016 medical electrical equipment safety standard and passes the biocompatibility test

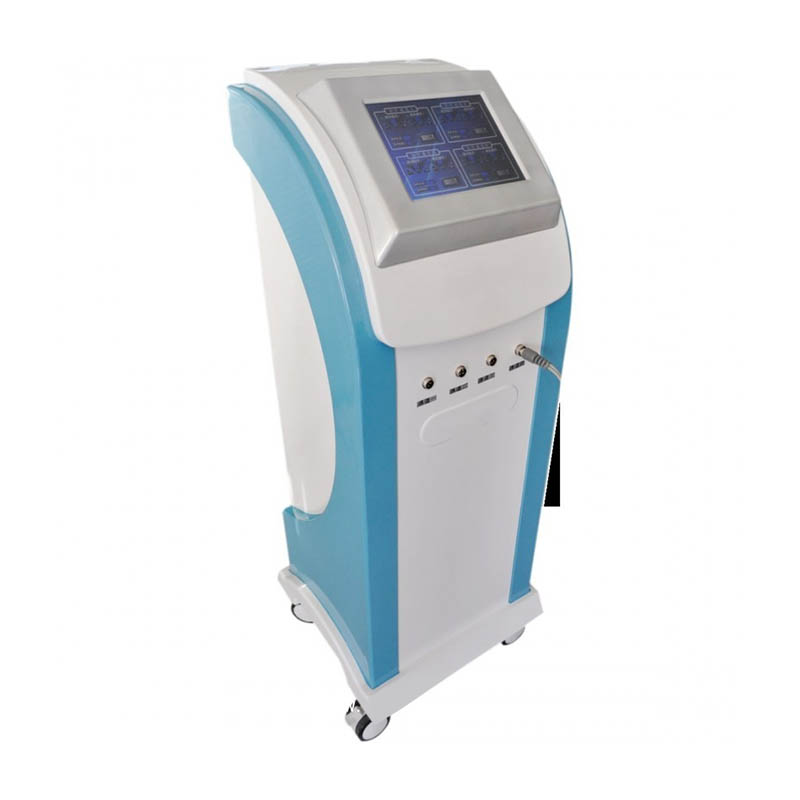

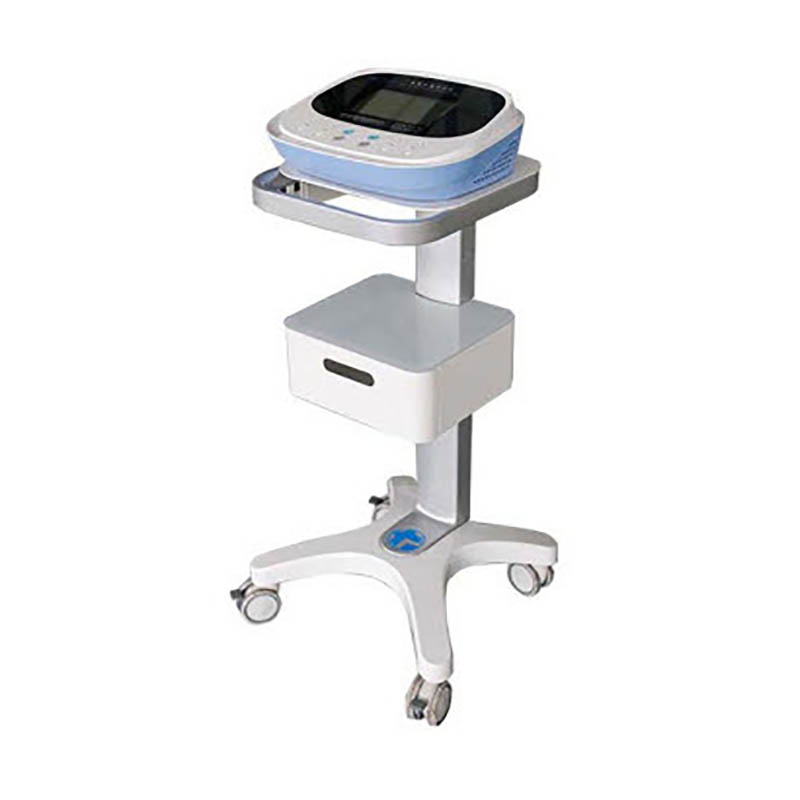

Medium frequency therapy device Mold

We are a Medium frequency therapy device mold manufacturer, providing high-quality Medium frequency therapy device mold manufacturing. As long as you want to customize/develop Medium frequency therapy device products, you can find us. We have professional injection mold design and mature manufacturing technology, providing you with one-stop service, from product design-mold making-product production-product packaging-product transportation, we can help you in every link. As long as you come to us, we will provide you with the ultimate service and satisfy you in terms of product quality, production time, information dialogue, etc.

Plastic Injection Mould making

Plastic molding specifications

Mold design:

Transaction process:

Mold testing:

Product packaging

Factory

We are Custom Plastic Mold factory. Our factory is plastic injection mold maker. we has 17 years of experience in professional custom plastic mold and 10 years of foreign trade experience. We are custom Plastic Mold supplier. We can provide custom Plastic Mold service. Our factory can make the Injection molded plastic parts, and the quality of the products will satisfy you.

We have more than 50 high-end machines and hundreds of engineers and designers. We can provide one-stop service, from product design - mold making - product production - product packaging - transportation. We have a complete production chain. We can meet all your requirements.

Services we provide:

Professional custom mold service, Plastic mold design and manufacturing .plastic product production, product design, mold design, blow mold customization, rotational mold customization, die-casting mold customization. 3D printing services, CNC manufacturing services, product packaging, customized packaging, shipping services.

We always adhere to the principles of quality first and time first. While providing customers with the highest quality products, try to maximize the production efficiency and shorten production time. We are proud to tell every customer that our company has not lost any customer since its establishment.If there is a problem with the product, we will seek a solution actively and take responsibility to the end.

FAQ

Q1: Are you trading company or manufacturer ?

A: We are manufacturers.

Q2. When can I get the quotation?

A: We usually quote within 2 days after we get your inquiry.

If you are very urgent, please call us or tell us in your email so that we can quote for you first.

Q3. How long is the lead-time for mold?

A: It all depends on the products' size and complexity. Normally, the lead time is 25 days.

Q4. I have no 3D drawing, how should I start the new project?

A: You can supply us a molding sample, we will help you finish the 3D drawing design.

Q5. Before shipment, how to make sure the products quality?

A: If you don't come to our factory and also don't have the third party for inspection, we will be as your inspection worker.

We will supply you a video for production process detail include process report, products size structure and surface detail, packing detail and so on.

Q6. What is your payment terms?

A: Mold Payment: 40% deposit by T/T in advance, 30% second mold payment before sending out the first trial samples, 30% mold balance after you agree the final samples.

B:Production Payment: 50% deposit in advance, 50% before sending out the final goods.

Q7: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit for best quality products.

2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
