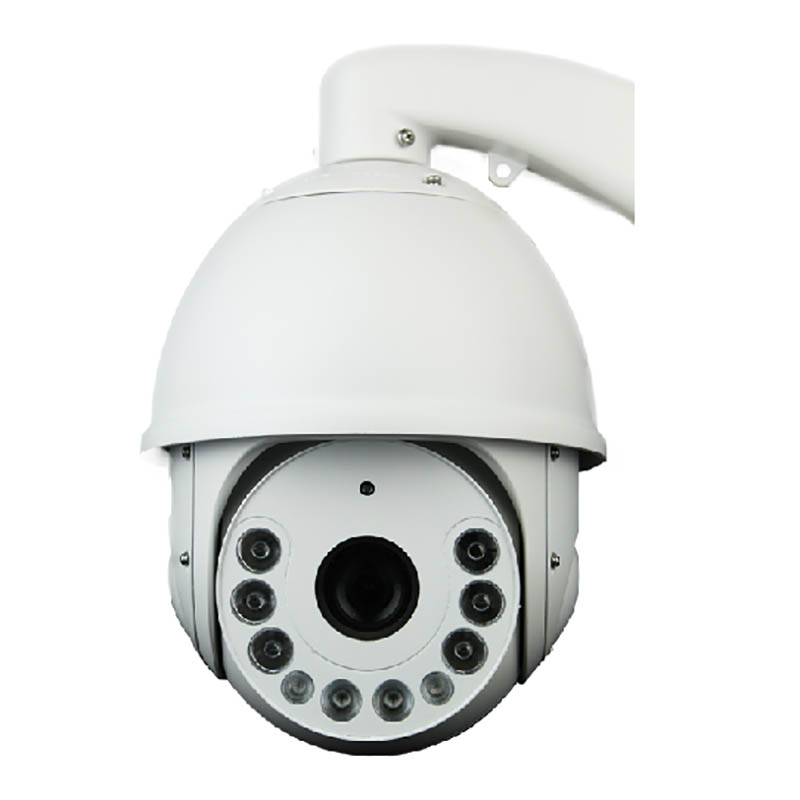

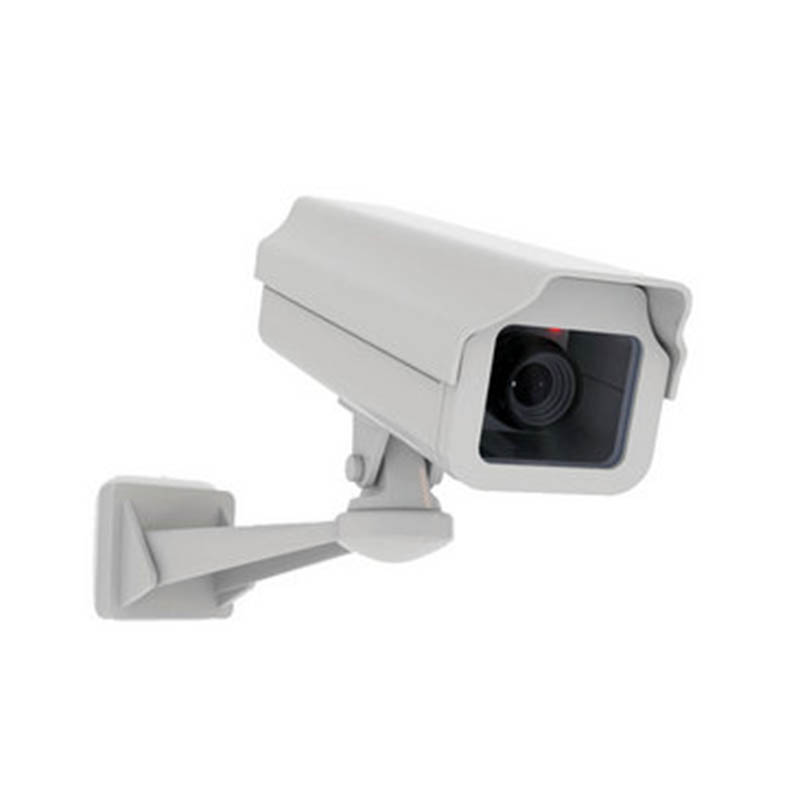

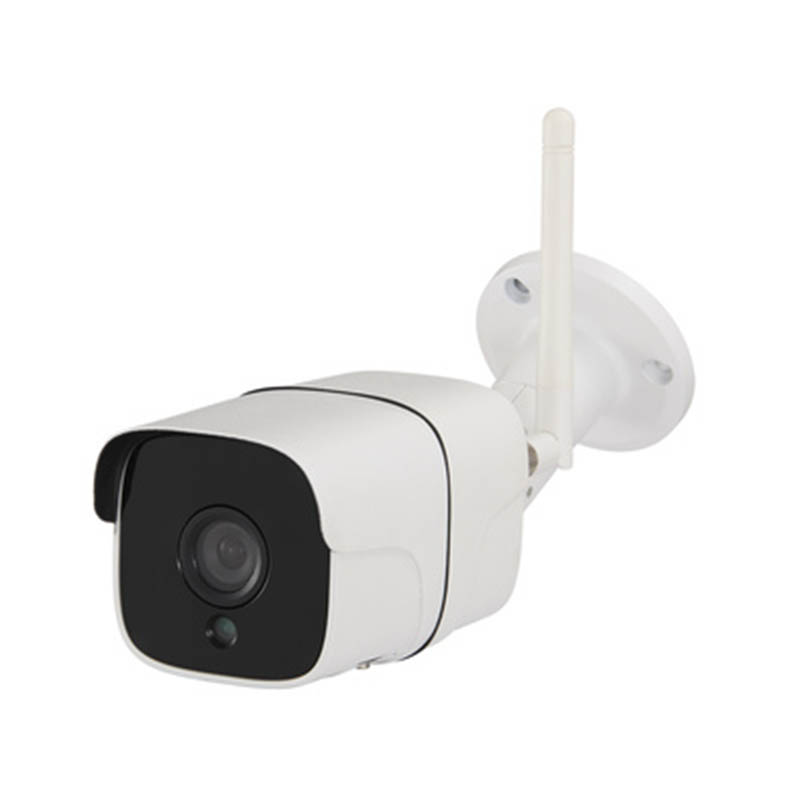

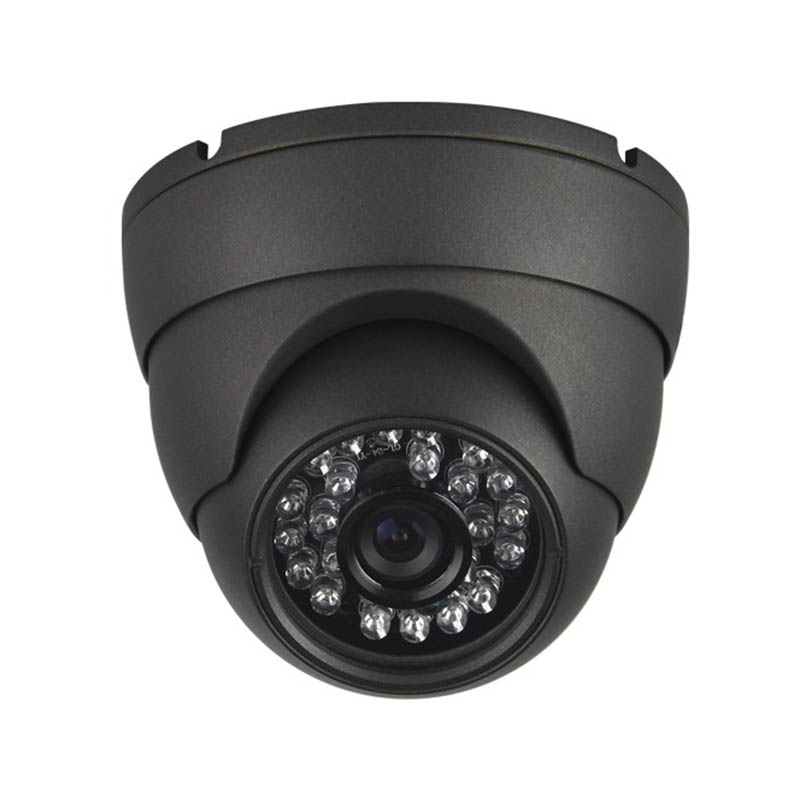

Camera Moulding

In addition, our company has established cooperative relationships with plastic raw material suppliers, printing manufacturers, etc. to ensure the supply of raw materials and printing quality. Through our rich experience and perfect supply chain, our company can provide customers with high-quality customized Camera products to meet their specific needs. At the same time, we have 10 years of professional foreign trade service experience, understand the foreign trade process, and better serve our customers. For Camera products, we can make corresponding plastic parts, which is mainly done through injection molds.

The production of camera injection molds needs to combine precision structural molding, optical performance requirements and automation adaptation requirements

1. Core design points

1) Parting and slider structure design

The camera housing often contains multi-directional undercut structures (such as lens buckles, heat dissipation holes, and wiring harness interfaces), and a front mold slider (T-slot or hydraulic drive) and a rear mold inclined top combination solution are required. For example, the metal inserts of the mobile phone camera frame need to be precisely positioned through a split insert design. The mold needs to be equipped with a placement slot with an adsorption function, and the four corners of the metal inserts are fixed by vacuum negative pressure to avoid injection molding deviation.

The parting surface needs to avoid the appearance surface, and the gate is usually selected in a hidden area (such as the inside of the battery compartment). Point gates or diving glue are used to avoid weld marks affecting optical performance

2) Dense core and cooling system

The slender core (such as the lens mounting hole) needs to be made of high-wear-resistant steel (NAK80 or S136), and a copper cooling rod is built in to improve heat dissipation efficiency and prevent deformation. The four corners of the mold core are designed with 5° tiger's mouth positioning, and the mold closing accuracy is ≤0.01mm.

The cooling system adopts an elastic liquid bag design, and the circulating coolant improves the uniformity of heat dissipation, which is suitable for the heat dissipation requirements of complex hollow structures.

3) Hot runner and ejection optimization

Multi-cavity molds recommend hot runner systems to reduce waste and ensure melt fluidity, which is suitable for the production of thin-walled parts such as camera bases. (At the same time, we can also choose cold runners, which is determined by the customer's budget and product structure)

The ejection mechanism uses Z-shaped ejectors and manipulators to collaborate in demolding. Transparent parts need to avoid scratches. Some cases integrate CCD vision systems to achieve automatic sorting

2. Technical difficulties and solutions

1) Metal insert positioning and demolding

Problem: The metal inserts (including bottom frames and triangular negatives) of the mobile phone camera frame are easily offset due to injection pressure.

Solution: The lower mold is designed with a placement groove with vacuum adsorption function, and the four corners of the metal insert are adsorbed through the combination of vertical ventilation channels and annular ventilation channels; after the mold is opened, the air supply mode is switched, and the high-pressure gas blows up the insert to assist demolding

2) Requirements for sealing of optical components

Problem: The clearance between the lens and the shell must be ≤0.05mm, and uneven shrinkage can easily lead to light leakage or water seepage.

Solution: The split insert design reserves mold repair margin, combines SPC process control to monitor dimensional stability, and automatically identifies the clearance through the CCD detection system

3) Integrated molding of multiple wiring harnesses

Problem: The 180-degree automotive camera wiring harness requires multiple simultaneous injections, and traditional molds are inefficient.

Solution: Mold strip combination design (including mold strip guide column positioning), integrated hot runner system and wire fixing plate, realize synchronous positioning injection molding of multiple wire harnesses, and the three-core structure of the mold core ensures the consistency of the bending angle of the wire harness

3 Material and process selection

1) Mold steel

Preferably choose 718H, S136 (corrosion resistance) or NAK80 (high polishability), key inserts need vacuum quenching treatment to extend life (at the same time, we will give the best mold material selection according to the customer's budget and product design)

2) Injection molding parameter control

Use 90-700T injection molding machine, mold temperature controller accurately controls temperature (±1℃), transparent lens cover requires oil circulation system to reduce shrinkage deformation, and is produced in a 100,000-level dust-free workshop

3) Surface treatment

The shell often requires etching process or frosted surface treatment, and the mold cavity adopts leather grain design to improve anti-slip and aesthetics (we have a variety of different mold matte leather grain effects, we will send it to customers through videos, so that customers can choose by themselves)

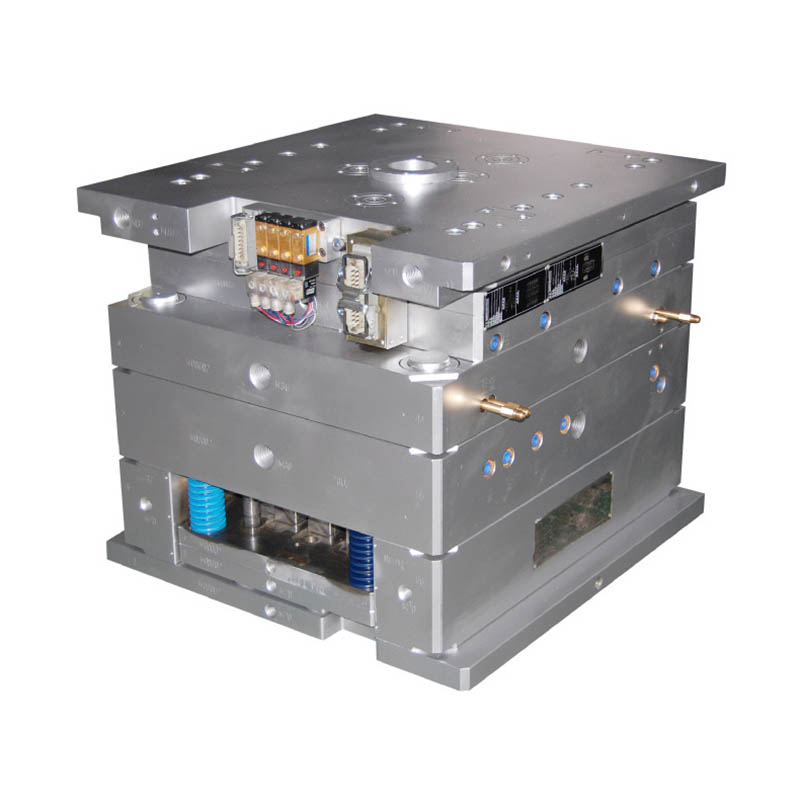

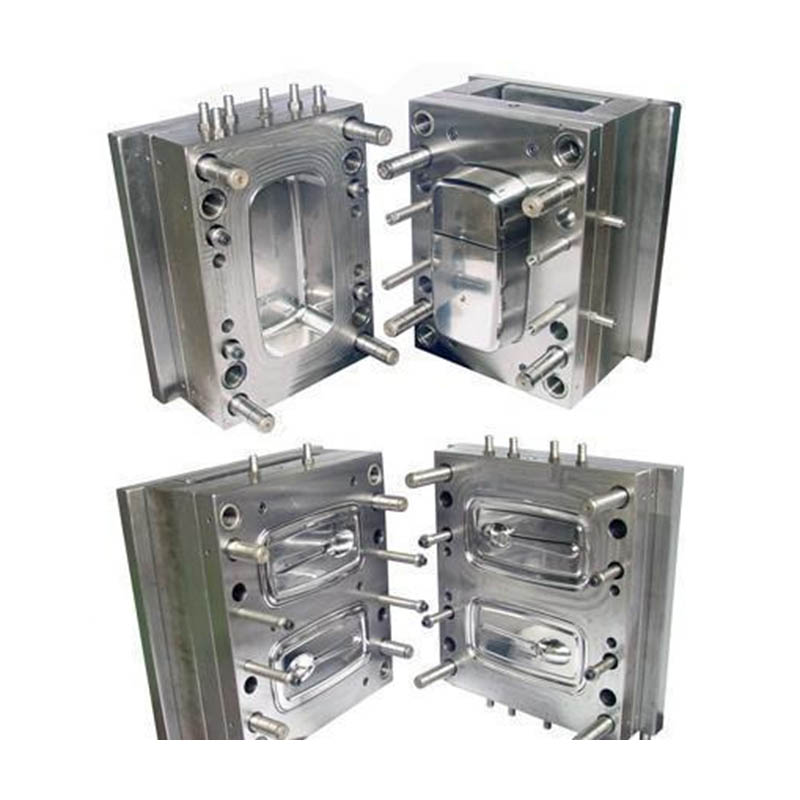

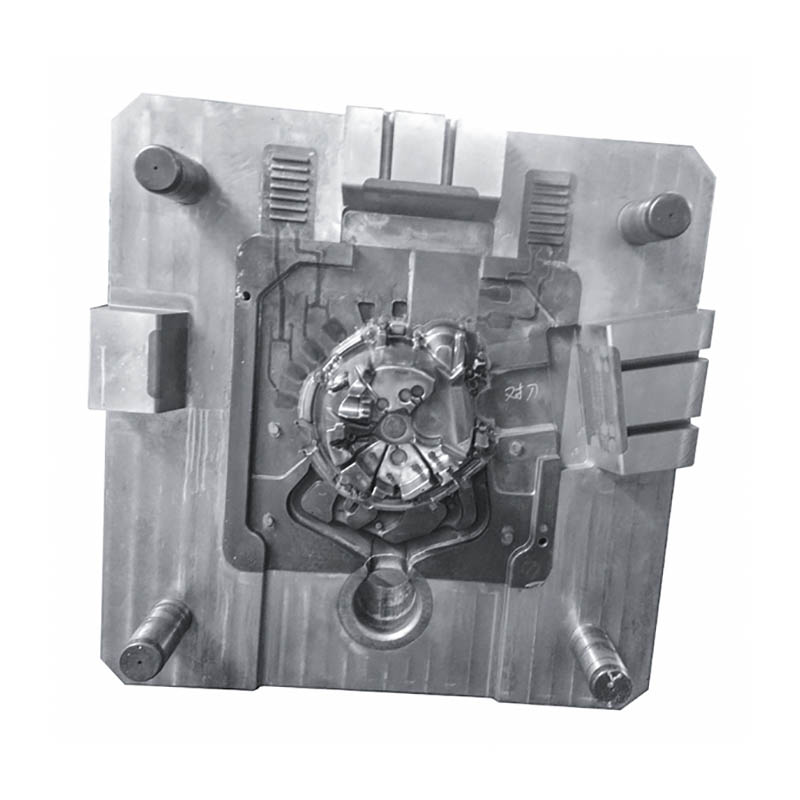

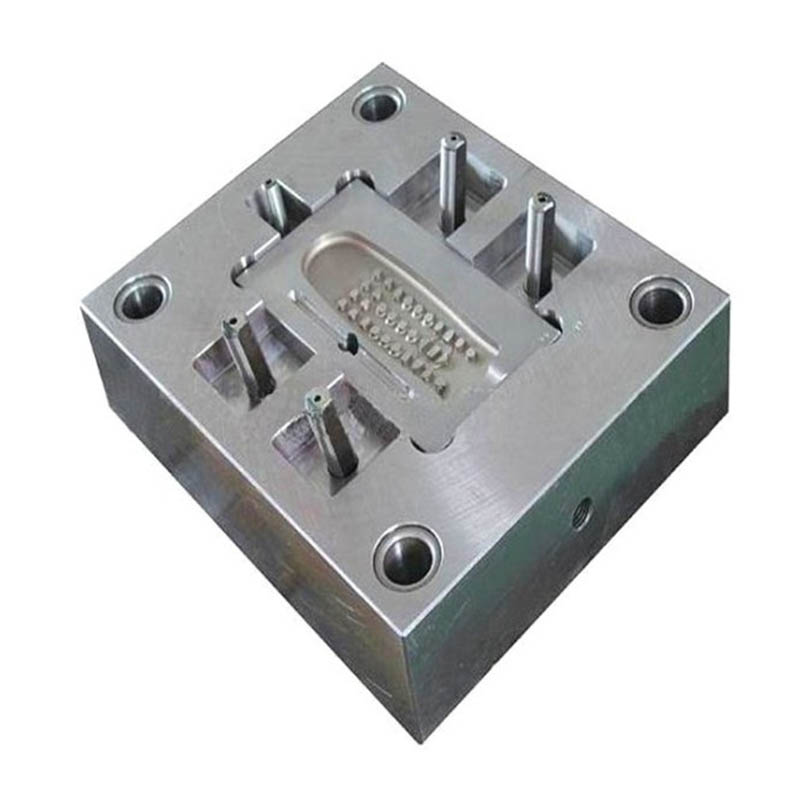

Camera Mold

We are a Camera mold manufacturer, providing high-quality Camera mold manufacturing. As long as you want to customize/develop Camera products, you can find us. We have professional injection mold design and mature manufacturing technology, providing you with one-stop service, from product design-mold making-product production-product packaging-product transportation, we can help you in every link. As long as you come to us, we will provide you with the ultimate service and satisfy you in terms of product quality, production time, information dialogue, etc.

Plastic Injection Mould making

Plastic molding specifications

Mold design:

Transaction process:

Mold testing:

Product packaging

Factory

We are Custom Plastic Mold factory. Our factory is plastic injection mold maker. we has 17 years of experience in professional custom plastic mold and 10 years of foreign trade experience. We are custom Plastic Mold supplier. We can provide custom Plastic Mold service. Our factory can make the Injection molded plastic parts, and the quality of the products will satisfy you.

We have more than 50 high-end machines and hundreds of engineers and designers. We can provide one-stop service, from product design - mold making - product production - product packaging - transportation. We have a complete production chain. We can meet all your requirements.

Services we provide:

Professional custom mold service, Plastic mold design and manufacturing .plastic product production, product design, mold design, blow mold customization, rotational mold customization, die-casting mold customization. 3D printing services, CNC manufacturing services, product packaging, customized packaging, shipping services.

We always adhere to the principles of quality first and time first. While providing customers with the highest quality products, try to maximize the production efficiency and shorten production time. We are proud to tell every customer that our company has not lost any customer since its establishment.If there is a problem with the product, we will seek a solution actively and take responsibility to the end.

FAQ

Q1: Are you trading company or manufacturer ?

A: We are manufacturers.

Q2. When can I get the quotation?

A: We usually quote within 2 days after we get your inquiry.

If you are very urgent, please call us or tell us in your email so that we can quote for you first.

Q3. How long is the lead-time for mold?

A: It all depends on the products' size and complexity. Normally, the lead time is 25 days.

Q4. I have no 3D drawing, how should I start the new project?

A: You can supply us a molding sample, we will help you finish the 3D drawing design.

Q5. Before shipment, how to make sure the products quality?

A: If you don't come to our factory and also don't have the third party for inspection, we will be as your inspection worker.

We will supply you a video for production process detail include process report, products size structure and surface detail, packing detail and so on.

Q6. What is your payment terms?

A: Mold Payment: 40% deposit by T/T in advance, 30% second mold payment before sending out the first trial samples, 30% mold balance after you agree the final samples.

B:Production Payment: 50% deposit in advance, 50% before sending out the final goods.

Q7: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit for best quality products.

2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
