Vacuum Cleaner Moulding

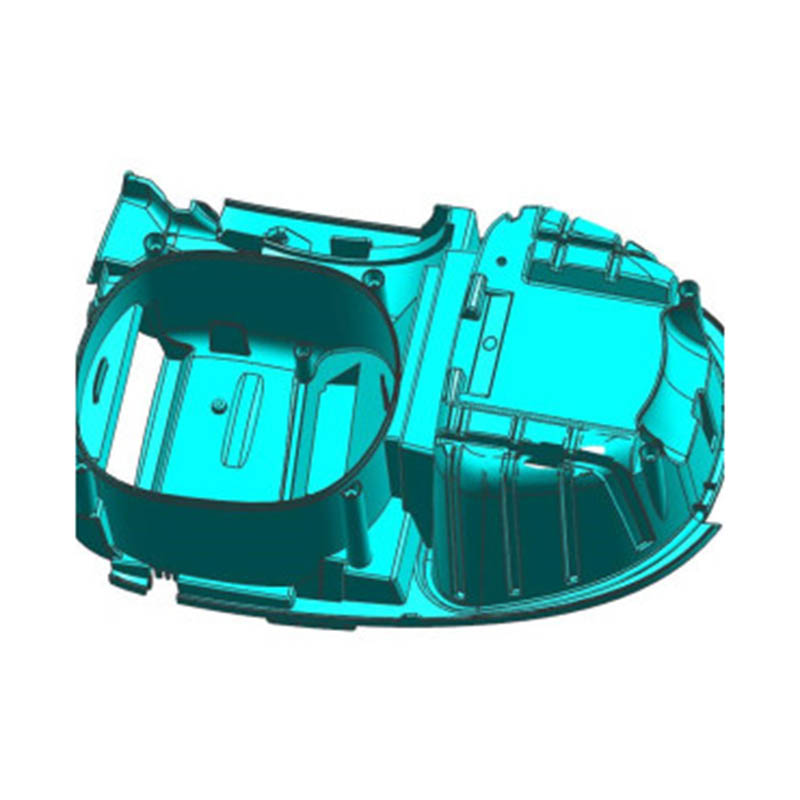

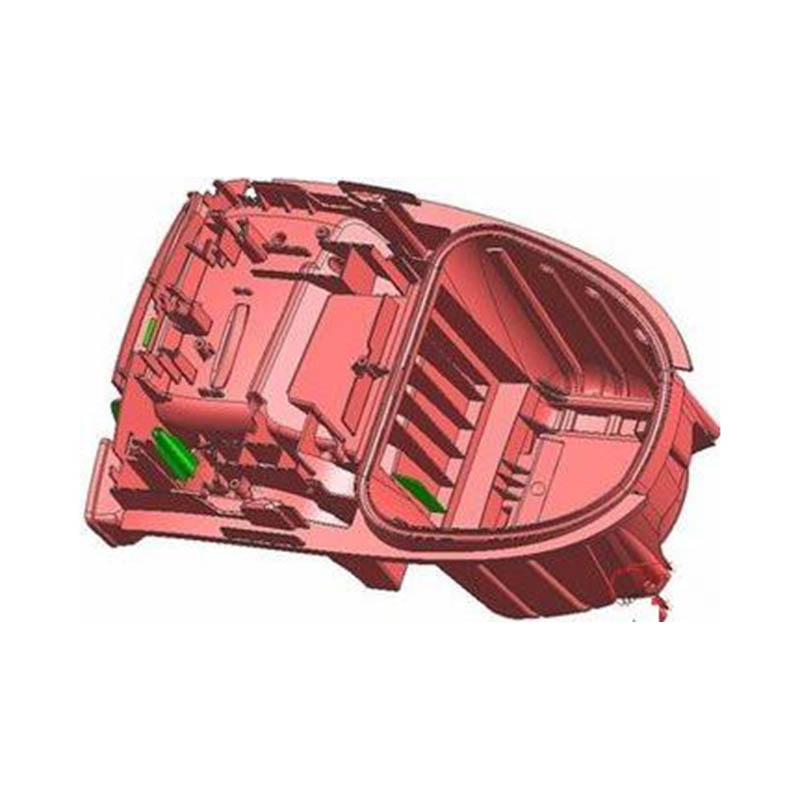

For vacuum cleaner products, we mainly produce the corresponding vacuum cleaner shell plastic parts. We complete the production of vacuum cleaner shell plastic parts through injection molding process.

Vacuum cleaner injection mold manufacturing technology:

I. Key points of mold structure design

1. Optimization of demolding mechanism

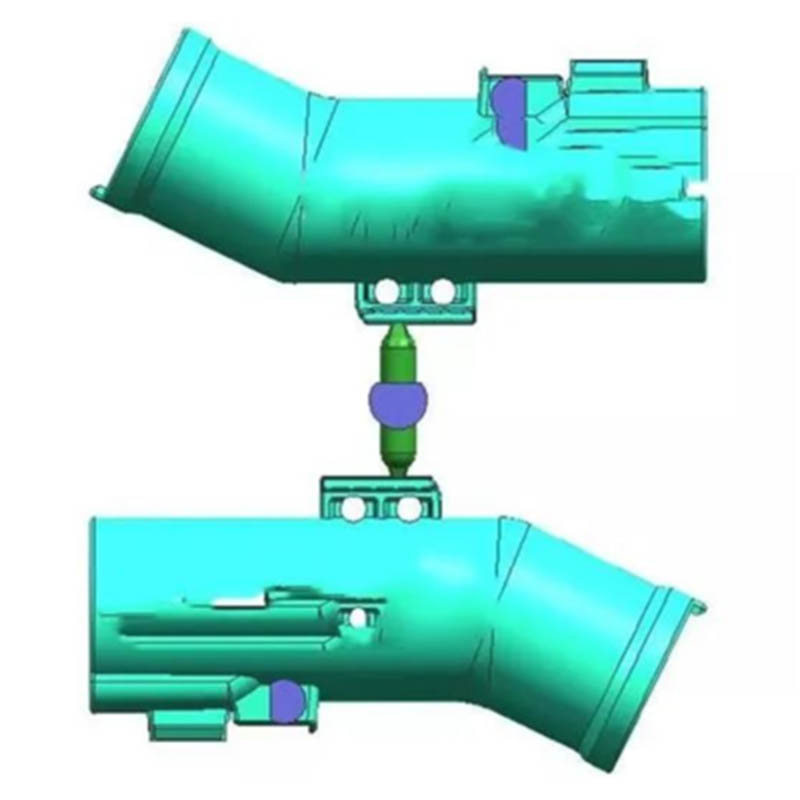

The injection mold of the vacuum cleaner shell needs to solve the problem of demolding adhesion, and mainly adopts the design of a liftable support body + linkage drive component. For example:

Passive demolding technology: The drive component is triggered when the movable mold and the fixed mold are separated to the maximum height, driving the support body to descend and detach from the molding shell, reducing manual intervention.

Quick disassembly of sliding components: The sliding rod and the fixed rod built into the sliding box are plugged in to replace the traditional bolt connection, shortening the disassembly time (applicable to vacuum cleaner nozzle mold).

Dual-cavity synchronous injection: The front and rear side mold cores are respectively molded with the first and second cavities to achieve synchronous production and improve efficiency (vehicle dust cup mold case)7.

2. Exhaust system design

In order to solve the injection molding air hole problem, the mold needs to integrate an efficient exhaust structure:

Sealing block + oblique air cavity combination: The sealing block is pressed against the exhaust through hole by a spring. During injection molding, the melt pressure pushes the sealing block up, and the gas is discharged through the oblique air cavity to avoid loose structure6.

Linkage support cover: When the support body is raised or lowered, the support covers on both sides move in linkage to expand the exhaust channel (vacuum cleaner housing mold).

3. Cooling system optimization

Y-type cooling channel: A Y-type channel is set on the bottom of the fixed mold seat, and the coolant is evenly distributed to improve the heat dissipation efficiency (vacuum cleaner cover mold).

Cooling chamber circulation design: The bottom mold seat has a built-in cooling chamber, and the coolant circulates from the inlet to the outlet to accelerate molding (vehicle dust cup mold).

Ⅱ. Material selection

1. Mold material selection: 45#, p20, 718, 718H, S316, H13, etc.

2. Molding plastic material selection:

ABS: used for shells and handles, with both strength and chemical resistance.

PP: suitable for internal structural parts, excellent heat resistance.

PC: the first choice for transparent window parts, high temperature resistance and high light transmittance.

3. Key production processes

1. Injection molding parameter control

Temperature and pressure: adjusted according to the melting point of the material (such as ABS injection molding temperature 220-250℃, pressure 60-100MPa).

Cooling cycle: combined with the cooling system design, the cycle is shortened to 30-60 seconds (vehicle dust cup case).

2. Automation and precision guarantee

Positioning system: through the positioning column and the positioning hole plug-in, the mold clamping accuracy is ensured (error ≤ 0.05mm).

Ejector mechanism: The cylinder drives the ejector plate to achieve automatic demolding and reduce manual intervention.

3. Innovation point-1: The gear-rack linkage drives the support body to descend, and the support cover is synchronously controlled to move to achieve demolding of complex structures. Effect: The demolding time is reduced by 40%, and the finished product yield is increased to more than 98%.

Innovation point-2: Modular sliding component design, the disassembly efficiency is increased by 50%. Effect: Suitable for rapid mold change of multiple models of suction heads, reducing mold development costs

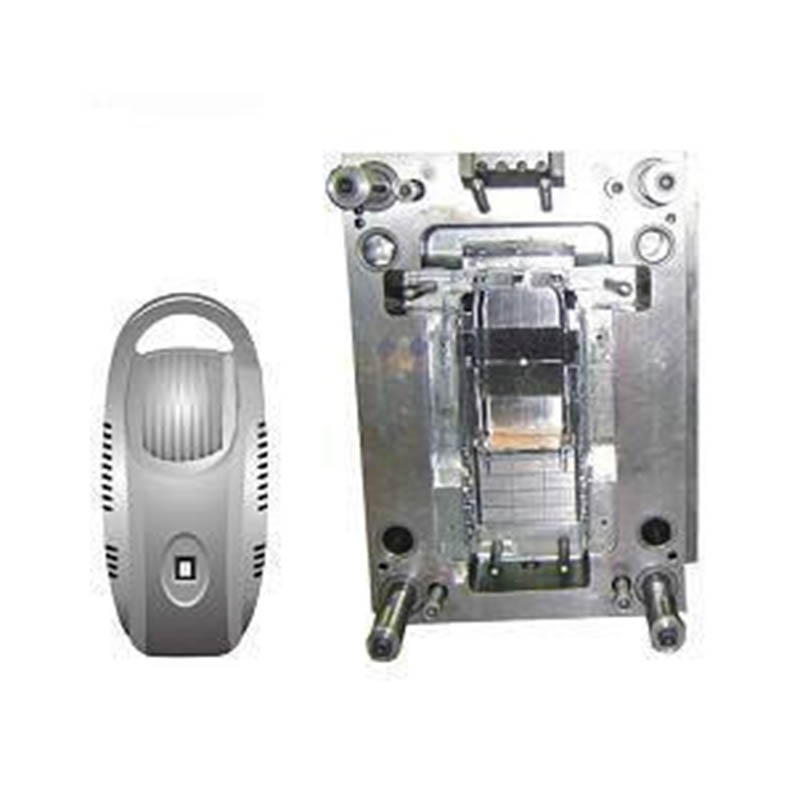

Vacuum cleaner mold

We are a Vacuum cleaner mold manufacturer, providing high-quality Vacuum cleaner mold manufacturing. As long as you want to customize/develop Vacuum cleaner products, you can find us. We have professional injection mold design and mature manufacturing technology to provide you with one-stop service, from product design-mold making-product production-product packaging-product transportation, we can help you in every link. As long as you come to us, we will provide you with the ultimate service and satisfy you in terms of product quality, production time, information dialogue, etc.

Plastic Injection Mould making

Plastic molding specifications

Mold design:

Transaction process:

Mold testing:

Product packaging

Factory

We are Custom Plastic Mold factory. Our factory is plastic injection mold maker. we has 17 years of experience in professional custom plastic mold and 10 years of foreign trade experience. We are custom Plastic Mold supplier. We can provide custom Plastic Mold service. Our factory can make the Injection molded plastic parts, and the quality of the products will satisfy you.

We have more than 50 high-end machines and hundreds of engineers and designers. We can provide one-stop service, from product design - mold making - product production - product packaging - transportation. We have a complete production chain. We can meet all your requirements.

Services we provide:

Professional custom mold service, Plastic mold design and manufacturing .plastic product production, product design, mold design, blow mold customization, rotational mold customization, die-casting mold customization. 3D printing services, CNC manufacturing services, product packaging, customized packaging, shipping services.

We always adhere to the principles of quality first and time first. While providing customers with the highest quality products, try to maximize the production efficiency and shorten production time. We are proud to tell every customer that our company has not lost any customer since its establishment.If there is a problem with the product, we will seek a solution actively and take responsibility to the end.

FAQ

Q1: Are you trading company or manufacturer ?

A: We are manufacturers.

Q2. When can I get the quotation?

A: We usually quote within 2 days after we get your inquiry.

If you are very urgent, please call us or tell us in your email so that we can quote for you first.

Q3. How long is the lead-time for mold?

A: It all depends on the products' size and complexity. Normally, the lead time is 25 days.

Q4. I have no 3D drawing, how should I start the new project?

A: You can supply us a molding sample, we will help you finish the 3D drawing design.

Q5. Before shipment, how to make sure the products quality?

A: If you don't come to our factory and also don't have the third party for inspection, we will be as your inspection worker.

We will supply you a video for production process detail include process report, products size structure and surface detail, packing detail and so on.

Q6. What is your payment terms?

A: Mold Payment: 40% deposit by T/T in advance, 30% second mold payment before sending out the first trial samples, 30% mold balance after you agree the final samples.

B:Production Payment: 50% deposit in advance, 50% before sending out the final goods.

Q7: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit for best quality products.

2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
